Asus Barebone System - 1U Rack-mountable - Socket SP5 LGA-6096 - 2 x Processor Support - AMD Chip - 6 TB DDR5 SDRAM DDR5-4800/PC5-38400 Maximum RAM Support - 24 Total Memory Slots - Serial ATA/600 Controller - AST2600 64 MB Graphic(s) - 12 SATA Interface(

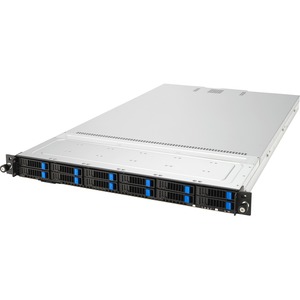

RS700A-E12-RS12U | AMD EPYC™ 9004 dual-processor 1U server that supports up to 24 DIMM, 12 NVMe, three PCIe® 5.0 slots, two M.2, OCP 3.0, one dual-slot GPU, and ASUS ASMB11-iKVM

Key Features

  • Powerful performance: Powered by AMD EPYC 9004 processors with 96 Zen 4 cores, 12-channel, up to 4800 MHz DDR5 and support for a maximum TDP of up to 400 watts per socket
  • Scale-up storage and expansion design: A total of 12 bays in combination of Tri-Mode NVMe/SATA/SAS drives on the front panel and three PCIe 5.0 slots for higher bandwidth and system upgrade
  • Flexible networking module design: Optional two 10 Gbps or four 1 Gbps on-board LAN module, and OCP 3.0 module with PCIe 5.0 slot in rear panel for faster connectivity
  • Advanced air cooling solution: Features enhanced volume air cooling (EVAC) heatsink for processors with up to a maximum 400W TDP
  • Enhanced IT-infrastructure management: ASUS ASMB11-iKVM remote control with ASPEED AST2600, ASUS Control Center IT management software and hardware-level Root-of-Trust solution
  • Read for AI and HPC workloads: Up to one dual-slot GPU, including NVIDIA A100 and A40, AMD Instinct and Xilinx

PCIe 5.0 Ready | Faster storage, graphics and networking capabilities

PCI Express® (PCIe®) 5.0 delivers 32GT/s bandwidth, which is twice the speed of PCIe 4.0, and offers lower power consumption, better land scalability and backwards compatibility. ASUS servers are PCIe 5.0 ready with scalability design to satisfy the increasing workloads for modern data center.

AMD EPYC™ 9004 Series Processors

The 9004 Series EPYC CPUs amplifies the AMD history of x86 architecture innovations and record-breaking performance with next generation 5nm technology as well as introducing support for high performant DDR5 DIMMs and fast PCIe® Gen 5 I/O. EPYC 9004 CPUs support 12 memory channels with 2 DIMMs/channel capability, delivering the resources needed for memory hungry AI, ML, HPC, and large in-memory computations.

World Records Leadership

ASUS holds the most amount of records in dual-socket (2P) and single-socket (1P) on SPEC CPU 2017 benchmark and dominate the computing performance. These top performance results provide a useful insight into compute-intensive workloads on different computer systems, enabling our customers to reduce complexity, tackle challenging workloads and accelerate system validations.

Availability: Call or email

Regular Price: $3,065.00

Special Price $2,881.10

Regular Price: $3,065.00

Special Price $2,881.10

ASUS Computer International

Fast shipping on all in-stock products

Quick turnaround on RFQs - email us today.

Buy from a certified veteran-owned small business (VOSB)

Questions? Call customer service at 503-208-8410.

Description

Details

Asus Barebone System - 1U Rack-mountable - Socket SP5 LGA-6096 - 2 x Processor Support - AMD Chip - 6 TB DDR5 SDRAM DDR5-4800/PC5-38400 Maximum RAM Support - 24 Total Memory Slots - Serial ATA/600 Controller - AST2600 64 MB Graphic(s) - 12 SATA Interface(s) - Processor Support (EPYC) - Ethernet - Windows Server 2019, Red Hat Enterprise Linux, SuSE Linux Enterprise Server, CentOS, Ubuntu Linux Supported Operating System - 4 USB 3.2 Gen 1 Port(s) - 2 x 1600 W

OVERVIEW:

  • Operating System Supported : Ubuntu Linux
  • Operating System Supported : CentOS
  • Operating System Supported : SuSE Linux Enterprise Server
  • Operating System Supported : Red Hat Enterprise Linux
  • Operating System Supported : Windows Server 2019
  • Chipset Manufacturer : AMD
  • Input Voltage : 230 V AC
  • Input Voltage : 120 V AC
  • Ethernet Technology : Ethernet
  • Maximum Memory Supported : 6 TB
  • Number of Total Expansion Bays : 12
  • Controller Type : Serial ATA/600
  • Number of Processors Supported : 2
  • Memory Technology : DDR5 SDRAM
  • Number of Power Supplies Installed : 2
  • Form Factor : Rack-mountable
  • Environmentally Friendly : Yes
  • Memory Standard : DDR5-4800/PC5-38400
  • Processor Socket : Socket SP5 LGA-6096
  • Maximum Power Supply Wattage : 1600 W
  • Rack Height : 1U
  • Total Number of USB Ports : 4
  • Processor Supported : EPYC
  • Height : 1.7"
  • Total Number of Memory Slots : 24
  • Width : 17.7"
  • Total Number of Expansion Slots : 4
  • Depth : 33.2"
  • Environmental Compliance : Restriction of Hazardous Substances (RoHS)
  • Weight (Approximate) : 32.94 lb
  • Graphics Controller Model : AST2600
  • Number of PCI Express x8 Slots : 1
  • Graphics Memory Capacity : 64 MB
  • Number of PCI Express x16 Slots : 3
  • Number of USB 3.2 Gen 1 Ports : 4
  • 64-bit Processing : Yes
  • Number of SATA Interfaces : 12
  • Number of VGA Ports : 2
  • Additional Info

    Additional Info

    SKU 01196RS700AE12RS12U16W1G-BF
    Weight 32.9400
    Is Featured N/A
    Manufacturer ASUS Computer International
    Manufacturer Part Number RS700A-E12-RS12U-16W1G
    Width 17.7"
    Length 1
    Height 1.7"
    Product ID 01196RS700AE12RS12U16W1G
    UNSPSC N/A
    Other Part Number N/A
    Special Price N/A
