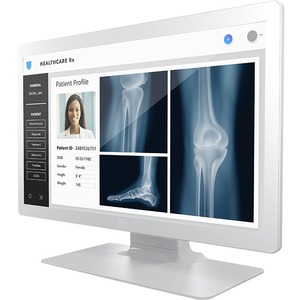

Elo 2403LM 24" Class LCD Touchscreen Monitor - 16:9 - 16 ms - 23.8" Viewable - TouchPro Projected Capacitive - 10 Point(s) Multi-touch Screen - 1920 x 1080 - Full HD - Thin Film Transistor (TFT) - 16.7 Million Colors - 250 Nit - LED Backlight - Speakers -

DICOM Medical Grade Touchscreen Monitors

The 03-Series Medical Grade Touchscreen Monitors merge best-in-class touchscreen technology with DICOM Part 14 functionality to help enhance clinical review for healthcare providers while increasing patient engagement. With a compact form factor and sleek design, the touchscreen monitors are well-suited for EMR documentation, image viewing, clinical collaboration, deployment within the laboratory and pharmacy and for integration into medical devices.

IP-54 Rating

Sealed against dirt, dust and liquids, delivering a reliable, easy-to-sanitize solution.

IEC 60601

IEC 60601 compliant power supply included.

DICOM 14

Ensures accurate and uniform image reproduction for reliable review.

Integrated Touch

TouchPro PCAP offers a 10-touch tablet-like experience with capability for use with wet or dry gloves.

Built-to-Last

Backed by Elo's 3-year standard warranty with optional EloCare service offerings.

DICOM 14 -Designed for Consistent Image Review

Get the image accuracy you need during clinical review with the 03-Series medical grade touch screen monitors. To help ensure healthcare providers and patients can view clear, accurate and consistent medical images, the displays are pre-calibrated from the factory per AAPM secondary display guidelines in compliance with the DICOM 14 GSDF curve.

Enhancing Clinical Workflow with Touch

From analyzing X-rays and scans to reviewing vitals, lab results and medical history, adding touchscreens into the clinical workflow creates efficiencies while improving the patient and provider experience.

Purpose-built for Healthcare

The 03-Series medical grade touch screen monitors offer flexibility for installation in a variety of healthcare environments to support increased communication among patients and healthcare providers.

Medical Device Ready

With a full line of touch technologies and display solutions, Elo can help develop and customize products for almost any medical device including ventilator monitors, anesthesia monitors, patient monitors and medication dispensers. From operating rooms to patient rooms, laboratories and anywhere healthcare is provided, Elo products are well-suited for medical applications where consistent and long-lasting quality and touch performance are critical.

Flexible Mounting

Every monitor is designed with VESA hole patterns to simplify mounting onto a variety of stands, arms, walls or medical carts.

Privacy Matters

Optional privacy filters offer an additional safeguard when reviewing private health information or sensitive administrative data.

Ergonomic

Optional handles can be added to easily move or rotate the display to a comfortable orientation.

Availability: Call or email

$1,028.00
$1,028.00
Elo Touch Solutions, Inc

Fast shipping on all in-stock products

Quick turnaround on RFQs - email us today.

Buy from a certified veteran-owned small business (VOSB)

Questions? Call customer service at 503-208-8410.

Description

Details

Elo 2403LM 24" Class LCD Touchscreen Monitor - 16:9 - 16 ms - 23.8" Viewable - TouchPro Projected Capacitive - 10 Point(s) Multi-touch Screen - 1920 x 1080 - Full HD - Thin Film Transistor (TFT) - 16.7 Million Colors - 250 Nit - LED Backlight - Speakers - HDMI - USB - VGA - White - USB Hub

OVERVIEW:

  • Maximum Resolution : 1920 x 1080
  • Touchscreen Type : TouchPro Projected Capacitive
  • Screen Size Class : 24"
  • Color Family : White
  • Built-in Devices : USB Hub
  • Speakers : Yes
  • Color Supported : 16.7 Million Colors
  • Multi-touch Screen : Yes
  • Viewable Screen Size : 23.8"
  • Product Color : White
  • HDMI : Yes
  • Number of Simultaneous Touchpoints : 10
  • Screen Mode : Full HD
  • Native Contrast Ratio : 1,000:1
  • Panel Technology : Thin Film Transistor (TFT)
  • VESA Mount Compatible : Yes
  • USB : Yes
  • Response Time : 16 ms
  • VESA Mount Standard : 100 x 100
  • VGA : Yes
  • Brightness : 250 Nit
  • Aspect Ratio : 16:9
  • Horizontal Viewing Angle : 178°
  • Vertical Viewing Angle : 178°
  • Height : 13.9"
  • Mount Type : Pole Mount
  • Mount Type : Wall Mountable
  • Width : 22.6"
  • Depth : 1.7"
  • Backlight Technology : LED
  • Features : Dust Resistant
  • Features : OnScreen Control
  • Features : On-screen Display (OSD)
  • Features : Anti-glare
  • Weight (Approximate) : 14.75 lb
  • Horizontal Frequency : 30 kHz to 82 kHz
  • Vertical Frequency : 50 Hz to 75 Hz
  • Ingress Protection (IP) Rating : IP54
  • Impact Protection (IK) Rating : IK06
  • Additional Info

    Additional Info

    SKU 01770E381452-BF
    Weight 14.7500
    Is Featured N/A
    Manufacturer Elo Touch Solutions, Inc
    Manufacturer Part Number E381452
    Width 22.6"
    Length 1
    Height 13.9"
    Product ID 01770E381452
    UNSPSC N/A
    Other Part Number N/A
    Special Price N/A
