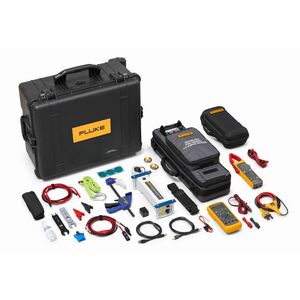

This comprehensive toolkit includes the PVA-1500HE2 I-V Curve Tracer, 393 FC Solar Clamp Meter, and 87V Digital Multimeter, offering a complete solution for solar installation diagnostics and maintenance. The PVA-1500HE2 offers an array of advanced features, including high throughput I-V curve tracing, providing quick and detailed performance data. Its intuitive user interface enables easy navigation and real-time analysis, allowing for immediate identification of potential issues. The 393 FC Solar Clamp Meter enables precise measurement of DC current and voltage, facilitating performance testing and troubleshooting of solar panels and inverters. Additionally, the 87V Digital Multimeter provides reliable measurements of AC/DC voltage, current, resistance, and capacitance, essential for verifying system integrity and diagnosing electrical faults. From commissioning and routine maintenance to troubleshooting and performance optimization, this toolkit empowers solar professionals to ensure the efficiency and reliability of solar installations with ease.
The 393 FC is a CAT III 1500 V True-RMS Clamp Meter is designed for solar photovoltaic (PV) installation technicians and maintenance professionals who work in high voltage DC environments. Solar site electrical testing and troubleshooting with the 393 FC includes:
- Measuring current and voltage
- Conducting continuity and resistance tests
- Performing inverter efficiency tests
- Diagnosing problems like short circuits
- Conducting preventive maintenance to identify and address potential issues early
The 87V Industrial Multimeter is the ideal electrical troubleshooting solution for solar inverters, combiner boxes and battery storage systems. Solar site electrical testing and troubleshooting with the 87V includes:
- Measuring current and voltage
- Identifying issues with connections and components with continuity and resistance tests
- Identifying faulty diodes impacting system performance
- Testing capacitors in inverters and power equipment
- Monitoring component temperatures for safety
- Diagnosing problems like short circuits
- Conducting preventive maintenance to identify and address potential issues early
Measure your solar PV system performance
The PVA-1500HE2 is a cutting-edge I-V curve tracer kit designed to measure PV system performance. With this high precision testing equipment, you can reliably assess the health and performance of solar modules and arrays, making informed decisions to enhance their output and longevity.
The PVA-1500HE2 kit offers an array of advanced features, including high throughput I-V curve tracing, providing quick and detailed performance data. Its intuitive user interface enables easy navigation and real-time analysis, allowing for immediate identification of potential issues. By pinpointing problems early, you can maximize your solar energy production and minimize downtime.
Comprehensive measurements and efficient analysis
For commissioning, operations, maintenance, and troubleshooting of PV arrays, I-V curve testing is the most complete solar module performance measurement. Quick analysis of curve datasets aids in detecting outliers, and the stored data functions as a baseline for future performance inquiries.
Accurate I-V curve tracing
The PVA measures the I-V (current versus voltage) curve of a PV string or module using a capacitive load. The measurement is typically performed at the string level by connecting directly to the string or at a combiner box using the fuses to select the string under test. The number of I-V curve points can be selected at 1
