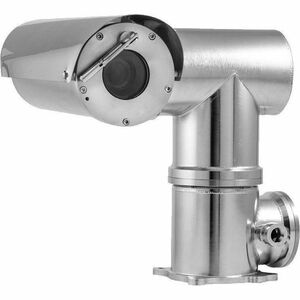

Wisenet TNU-X6320A2F2WT1-Z 2.4 Megapixel Full HD Network Camera - Color - H.264, H.265, MJPEG, H.264 (MPEG-4 Part 10/AVC) - 1920 x 1080 - 4.44 mm- 142.60 mm Varifocal Lens - 32x Optical - 60 fps - CMOS - Fast Ethernet - IP66, IP67 - Explosion Proof

The TNU-X6320A series is an explosion-protected PTZ camera station for use in hazardous areas in onshore, offshore, marine, and heavy industrial environments. The base unit carries dual NPT cable entries with easy access for cable termination during installation as standard, maximizing compatibility and ease of use with existing fixed conduit installations.

  • 2MP (1920 x 1080) resolution
  • 4.44-142.6mm (32x) optical zoom, 16x digital zoom
  • H.265, H.264, MJPEG triple codec, WiseStream II
  • DIS with built-in Gyro sensor
  • Day & Night (ICR), WDR (120dB)
  • Video Analytics, dual SDXC memory slots
  • cLCus C1/D1 certified
  • Electro-polished 316L stainless steel on all welded assemblies
  • Camera station window in toughened glass
  • Integrated Wiper
  • 110VAC Supply voltage
  • -40°C ~ +60°C (-40°F ~ +140°F) Operating temperature
  • IP66/IP67 rated
  • Single Mode Fiber 9/125µm 10/100Mb Ethernet


Availability: Call or email

$34,565.00
$34,565.00

Fast shipping on all in-stock products

Quick turnaround on RFQs - email us today.

Buy from a certified veteran-owned small business (VOSB)

Questions? Call customer service at 503-208-8410.

Description

Details

Wisenet TNU-X6320A2F2WT1-Z 2.4 Megapixel Full HD Network Camera - Color - H.264, H.265, MJPEG, H.264 (MPEG-4 Part 10/AVC) - 1920 x 1080 - 4.44 mm- 142.60 mm Varifocal Lens - 32x Optical - 60 fps - CMOS - Fast Ethernet - IP66, IP67 - Explosion Proof

OVERVIEW:

  • Limited Warranty : 3 Year
  • Video Formats : H.264 (MPEG-4 Part 10/AVC)
  • Video Formats : MJPEG
  • Video Formats : H.265
  • Video Formats : H.264
  • HD Recording : Yes
  • Storage Type : Memory Card
  • Connectivity Technology : Wired
  • Features : PTZ
  • Features : Alarm Triggering
  • Features : Face Detection
  • Features : Shock Detection
  • Features : Cross Line Detection
  • Features : Enter/Exit Detector
  • Features : Tamper Detection
  • Features : White Balance
  • Features : Privacy Masking
  • Features : 3D Noise Filtering
  • Features : 2D Noise Reduction
  • Features : Digital Noise Reduction
  • Features : SD Card Local Storage
  • Features : Ingress Protection
  • Features : Wiper
  • Features : Defog
  • Features : Digital Image Stabilization
  • Features : Back Light Compensation (BLC)
  • Features : Auto Gain Control
  • Features : Highlight Compensation (HLC)
  • Features : Wide Dynamic Range
  • Features : Day/Night
  • Features : Motion Detection
  • Lens Type : Varifocal
  • Shortest Shutter Speed : 1/12000 Second
  • Minimum Operating Temperature : -40°F (-40°C)
  • Image Sensor Type : CMOS
  • Maximum Video Resolution : 1920 x 1080
  • Recording Formats : Full HD
  • Input Voltage : 110 V AC
  • Remote Management : Yes
  • Minimum Focal Length : 4.44 mm
  • Longest Shutter Speed : 1 Second
  • Maximum Operating Temperature : 140°F (60°C)
  • Image Sensor Size : 1/2.8"
  • Power Source Type : AC
  • Maximum Focal Length : 142.60 mm
  • Network (RJ-45) : Yes
  • Maximum Frame Rate : 60 fps
  • Ethernet Technology : Fast Ethernet
  • Protocols : SRTP
  • Protocols : LLDP
  • Protocols : UPnP
  • Protocols : Bonjour
  • Protocols : PIM-SM
  • Protocols : QoS
  • Protocols : DDNS
  • Protocols : DNS
  • Protocols : ARP
  • Protocols : SNMPv1/v2c/v3 (MIB2)
  • Protocols : IGMP
  • Protocols : ICMP
  • Protocols : SMTP
  • Protocols : FTP
  • Protocols : DHCP
  • Protocols : SSL
  • Protocols : HTTPS
  • Protocols : HTTP
  • Protocols : NTP
  • Protocols : RTSP
  • Protocols : RTCP
  • Protocols : RTP/TCP
  • Protocols : RTP/UDP
  • Protocols : UDP/IP
  • Protocols : TCP/IP
  • Protocols : ONVIF
  • Ingress Protection Rating : IP67
  • Ingress Protection Rating : IP66
  • Durability : Explosion Proof
  • Lens Included : Yes
  • Color Supported : Color
  • Lens Mount Type : Board Mount
  • Minimum Aperture : f/4.4
  • Maximum Aperture : f/1.6
  • Field of View : H : 64.66°(Wide) ~ 2.29°(Tele) / V : 38.08°(Wide) ~ 1.30°(Tele)
  • Optical Zoom : 32x
  • Effective Camera Resolution : 2.4 Megapixel
  • Additional Info

    Additional Info

    SKU 12218TNUX6320A2F2WT1Z-BF
    Weight 1.0000
    Is Featured N/A
    Manufacturer Hanwha Group
    Manufacturer Part Number TNU-X6320A2F2WT1-Z
    Width 1
    Length 1
    Height 1
    Product ID 12218TNUX6320A2F2WT1Z
    UNSPSC N/A
    Other Part Number N/A
    Special Price N/A
