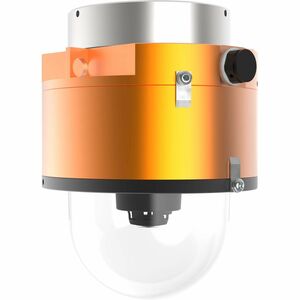

Wisenet TNM-XNF9013EPT3-Z 12 Megapixel Network Camera - Color - Fisheye - Orange - 26.25 ft Infrared Night Vision - H.264, H.265, MJPEG, H.264B, H.264H, H.264M, H.265B, H.265H, H.265M - 3584 x 2688 - 1.08 mm Fixed Lens - 60 fps - CMOS - Fast Ethernet - US

The TNM-XNF9013EPT3-Z is a cFMus Class I/II/III, Division 1 (Groups: B, C, D, E, F, G) and IECEx & ATEX Zone 1/21 (IIB+H2/IIIC) camera system. The housing is proudly designed and manufactured in the USA to exceed the highest global industry standards for safe operation in hazardous or potentially combustible environments and in the most extreme weather conditions.The TNM-XNF9013EPT3-Z utilizes an industry first patented multi-chambered enclosure design, with an explosion proof bulkhead used between chambers with each bulkhead including access ports to allow electrical/network connections to be safely passed through. The TNM-P9022EPT3-Z is designed with corrosion resistant marine-grade aluminum with an IP66/67 Type 4X rating for protection against water/dust particles and is certified to withstand temperatures ranging from -20°C to +55°C. The enclosure also features a patented GORE-TEX® Breather Drain membrane system incorporated into the housing design: air within the enclosure is allowed to equalize with the surrounding atmosphere, preventing interior condensation and negating any potential damage to the onboard electronics. The TNM-XNF9013EPT3-Z utilizes 802.3at Power over Ethernet (PoE+) for power and network connectivity, providing a flexible low-voltage install solution.

Availability: Call or email

$13,850.00
$13,850.00

Fast shipping on all in-stock products

Quick turnaround on RFQs - email us today.

Buy from a certified veteran-owned small business (VOSB)

Questions? Call customer service at 503-208-8410.

Description

Details

Wisenet TNM-XNF9013EPT3-Z 12 Megapixel Network Camera - Color - Fisheye - Orange - 26.25 ft Infrared Night Vision - H.264, H.265, MJPEG, H.264B, H.264H, H.264M, H.265B, H.265H, H.265M - 3584 x 2688 - 1.08 mm Fixed Lens - 60 fps - CMOS - Fast Ethernet - USB - IK10 - IP66, IP67 - Water Resistant, Dust Resistant, Corrosion Resistant, Explosion Proof

OVERVIEW:

  • Limited Warranty : 5 Year
  • Video Formats : H.265M
  • Video Formats : H.265H
  • Video Formats : H.265B
  • Video Formats : H.264M
  • Video Formats : H.264H
  • Video Formats : H.264B
  • Video Formats : MJPEG
  • Video Formats : H.265
  • Video Formats : H.264
  • HD Recording : Yes
  • Storage Type : Memory Card
  • Maximum Power Consumption : 23 W
  • Color Family : Orange
  • Connectivity Technology : Wired
  • Features : Gain Control
  • Features : Defog
  • Features : Human Detection
  • Features : Vehicle Detection
  • Features : Motion Detection
  • Features : Ingress Protection
  • Features : HTTPS Encryption
  • Features : Privacy Masking
  • Features : Built-in IR LED
  • Features : Day/Night
  • Lens Type : Fixed
  • Shortest Shutter Speed : 1/12000 Second
  • Minimum Operating Temperature : -40°F (-40°C)
  • Image Sensor Type : CMOS
  • USB : Yes
  • Maximum Video Resolution : 3584 x 2688
  • Input Voltage : 12 V DC
  • Product Color : Orange
  • Remote Management : Yes
  • Longest Shutter Speed : 1/5 Second
  • Maximum Operating Temperature : 140°F (60°C)
  • Image Sensor Size : 1/2.3"
  • Night Vision : Yes
  • Power Source Type : PoE+
  • Power Source Type : PoE
  • Power Source Type : DC
  • Maximum Focal Length : 1.08 mm
  • Network (RJ-45) : Yes
  • Maximum Frame Rate : 60 fps
  • Night Vision Distance : 26.25 ft
  • Ethernet Technology : Fast Ethernet
  • Impact Protection Rating : IK10
  • Night Vision Type : Infrared
  • Form Factor : Fisheye
  • Protocols : Unicast
  • Protocols : Multicast
  • Protocols : IEEE 802.1X (EAP-TLS, PEAP-MSCHAPv2)
  • Protocols : ONVIF
  • Protocols : Digest Authentication
  • Protocols : SRTP
  • Protocols : LLDP
  • Protocols : Bonjour
  • Protocols : UPnP
  • Protocols : PIM-SM
  • Protocols : QoS
  • Protocols : DDNS
  • Protocols : DNS
  • Protocols : ARP
  • Protocols : SNMPv1/v2c/v3 (MIB2)
  • Protocols : IGMP
  • Protocols : ICMP
  • Protocols : SMTP
  • Protocols : FTP
  • Protocols : DHCP
  • Protocols : SSL/TLS
  • Protocols : HTTPS
  • Protocols : HTTP
  • Protocols : NTP
  • Protocols : RTCP
  • Protocols : RTSP
  • Protocols : RTP/TCP
  • Protocols : RTP/UDP
  • Protocols : UDP/IP
  • Protocols : TCP/IP
  • Protocols : IPv6
  • Protocols : IPv4
  • Ingress Protection Rating : IP67
  • Ingress Protection Rating : IP66
  • Durability : Explosion Proof
  • Durability : Corrosion Resistant
  • Durability : Dust Resistant
  • Durability : Water Resistant
  • Lens Included : Yes
  • Color Supported : Color
  • Analog Video Signal Format : CVBS
  • Country of Origin : United States
  • Environmentally Friendly : Yes
  • Maximum Aperture : f/2.2
  • Field of View : H: 209°/180°, V:83°
  • Effective Camera Resolution : 12 Megapixel
  • Weight (Approximate) : 18.98 lb
  • Environmental Compliance : Waste Electrical and Electronic Equipment Directive (WEEE)
  • Additional Info

    Additional Info

    SKU 12218TNMXNF9013EPT3Z-BF
    Weight 18.9800
    Is Featured N/A
    Manufacturer Hanwha Group
    Manufacturer Part Number TNM-XNF9013EPT3-Z
    Width 1
    Length 1
    Height 1
    Product ID 12218TNMXNF9013EPT3Z
    UNSPSC N/A
    Other Part Number N/A
    Special Price N/A
