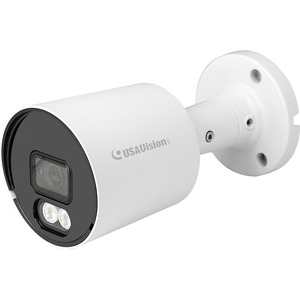

GeoVision UA-CB550F3 5 Megapixel Outdoor Surveillance Camera - Color - Bullet - 98.43 ft Infrared/Color Night Vision - 2592 x 1944 - 3.60 mm Fixed Lens - 30 fps - CMOS - Wall Mount, Bracket Mount, Power Box Mount - IP66

UA-CB550F3 is an outdoor, 5 MP HD Analog Camera with an automatic IR-cut filter. It is built in 2 IR LEDs and 2 full-color warm LEDs to enhance the accuracy of day and night surveillance. The IR illumination can reach up to 30 m (100 ft) while the warm LED is up to 20 m (65 ft). The camera adheres to IP66 standards and supports a 4-in-1 video output (TVI / AHD / CVI / CVBS). Integrated with USAVision Standalone Video Recorder (UA-XVL810, UA-XVL1610 and UA-XVR810), it supports real-time alert, event playback and more.

Availability: Call or email

$129.00
$129.00
GeoVision, Inc

Fast shipping on all in-stock products

Quick turnaround on RFQs - email us today.

Buy from a certified veteran-owned small business (VOSB)

Questions? Call customer service at 503-208-8410.

Description

Details

GeoVision UA-CB550F3 5 Megapixel Outdoor Surveillance Camera - Color - Bullet - 98.43 ft Infrared/Color Night Vision - 2592 x 1944 - 3.60 mm Fixed Lens - 30 fps - CMOS - Wall Mount, Bracket Mount, Power Box Mount - IP66

OVERVIEW:

  • HD Recording : Yes
  • Connectivity Technology : Wired
  • Features : Back Light Compensation (BLC)
  • Features : Automatic White Balance
  • Features : Auto Gain Control
  • Features : 2D Digital Noise Reduction (2DNR)
  • Features : Built-in Infrared Illuminator
  • Features : Day/Night
  • Features : Removable IR Cut-off Filter
  • Features : Ingress Protection
  • Features : Built-in Microphone
  • Features : Built-in IR LED
  • Lens Type : Fixed
  • Minimum Operating Temperature : -22°F (-30°C)
  • Image Sensor Type : CMOS
  • Maximum Video Resolution : 2592 x 1944
  • Input Voltage : 12 V DC
  • Remote Management : No
  • Indoor/Outdoor : Outdoor
  • Maximum Operating Temperature : 131°F (55°C)
  • Night Vision : Yes
  • Package Contents :
    • 5 MP Super Low Lux Full Color IR Bullet Camera
    • Screw Kit
    • Drill Template Paster
    • Torx Wrench S2.5 mm
    • Download Guide
  • Maximum Focal Length : 3.60 mm
  • Maximum Frame Rate : 30 fps
  • Night Vision Distance : 98.43 ft
  • Mount Type : Power Box Mount
  • Mount Type : Bracket Mount
  • Mount Type : Wall Mount
  • Video Signal Format : PAL
  • Video Signal Format : NTSC
  • Night Vision Type : Infrared/Color
  • Form Factor : Bullet
  • Ingress Protection Rating : IP66
  • Number of IR LEDs : 2
  • Lens Included : Yes
  • Color Supported : Color
  • Analog Video Signal Format : CVBS
  • Analog Video Signal Format : CVI
  • Analog Video Signal Format : AHD
  • Analog Video Signal Format : TVI
  • Height : 2.9"
  • Lens Mount Type : M12-mount
  • Maximum Operating Humidity : 95%
  • Width : 2.9"
  • Environmentally Friendly : Yes
  • Maximum Aperture : f/1
  • Field of View : Horizontal: 88.1°, Vertical: 47.5°, Diagonal: 104.1°
  • Length : 6"
  • Effective Camera Resolution : 5 Megapixel
  • Weight (Approximate) : 12.35 oz
  • Environmental Compliance : Restriction of Hazardous Substances (RoHS)
  • Additional Info

    Additional Info

    SKU 03563UACB550F3-BF
    Weight 12.3500
    Is Featured N/A
    Manufacturer GeoVision, Inc
    Manufacturer Part Number UA-CB550F3
    Width 2.9"
    Length 6"
    Height 2.9"
    Product ID 03563UACB550F3
    UNSPSC N/A
    Other Part Number N/A
    Special Price N/A
