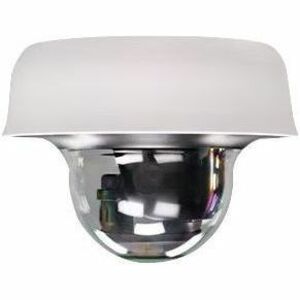

Meraki MV63M-HW 8.4 Megapixel Outdoor 4K Network Camera - Mini Dome - 65.62 ft Infrared Night Vision - H.264 - 3854 x 2176 - 3.30 mm Fixed Lens - 24 fps - CMOS - Gigabit Ethernet - Wall Mount, Ceiling Mount, Corner Mount - IK10+ - IP67 - Audio Support - D

Overview

The Meraki MV63 series offers 8MP image quality and combines physical security and advanced analytics in a powerful yet compact fixed-lens mini dome form factor. With an edge architecture that minimizes physical infrastructure and software requirements, MV63 series enables faster, easier deployments and greater scalability.

Security in high definition

The ultra-high-performance MV63 series camera offers up to 4K resolution for high-definition video, providing the detailed clarity needed to monitor what matters most. With IK10+ and IP67 ratings, along with IR illumination, the MV63 ensures extended visibility and safety, even in outdoor and challenging environments.

Additionally, the MV63 is engineered to withstand the rigors of transportation environments, ensuring reliable performance in the face of shock and vibration with EN 50155 Railway Compliance certification.

Compact and easy to install, the MV63 series boasts a new universal mounting place compatible with various mounting accessories. It delivers the right viewing angle wherever it is placed. The MV63 series is ideal for monitoring entrances, exits, and the general perimeter from walls, ceilings, or corner-mount locations.

Using machine-learning-based computer vision, the MV63 series can perform real-time object detection, classification, and tracking of people and vehicles, as well as attribute detection and search to increase safety and provide valuable insights into activity. These smart cameras deliver powerful business intelligence without compromising physical security.

Product Highlights

  • Fixed lens mini-dome camera with 8MP Image Sensor
  • Compact form factor with 101.3° horizontal FoV
  • More detailed information with up to 4K resolution
  • Low bandwidth Consumption for recording and streaming using Smartcodec encoding
  • Guaranteed days of video with Smart Retention
  • Night vision with IR illumination up to 20 m (66 ft)
  • IK10+ and IP67 for deployment in outdoor and demanding environments
  • Intelligent motion indexing with search engine
  • Built-in search tools like motion search, motion recap, motion heatmaps and Attribute Search.

Availability: Call or email

$1,607.00
$1,607.00
Cisco Systems, Inc

Fast shipping on all in-stock products

Quick turnaround on RFQs - email us today.

Buy from a certified veteran-owned small business (VOSB)

Questions? Call customer service at 503-208-8410.

Description

Details

Meraki MV63M-HW 8.4 Megapixel Outdoor 4K Network Camera - Mini Dome - 65.62 ft Infrared Night Vision - H.264 - 3854 x 2176 - 3.30 mm Fixed Lens - 24 fps - CMOS - Gigabit Ethernet - Wall Mount, Ceiling Mount, Corner Mount - IK10+ - IP67 - Audio Support - Day/Night, Motion Detection, Vehicle Detection, Human Detection, Privacy Masking, Smart Object Detection, Video Content Analytics, Built-in IR LED, Built-in Microphone, Infrared Detection

OVERVIEW:

  • Limited Warranty : 5 Year
  • Video Formats : H.264
  • HD Recording : Yes
  • Maximum Power Consumption : 25.50 W
  • Connectivity Technology : Wired
  • Features : Infrared Detection
  • Features : Built-in Microphone
  • Features : Built-in IR LED
  • Features : Video Content Analytics
  • Features : Smart Object Detection
  • Features : Privacy Masking
  • Features : Human Detection
  • Features : Vehicle Detection
  • Features : Motion Detection
  • Features : Day/Night
  • Lens Type : Fixed
  • Shortest Shutter Speed : 1/32000 Second
  • Minimum Operating Temperature : -40°F (-40°C)
  • Image Sensor Type : CMOS
  • Audio Support : Yes
  • Maximum Video Resolution : 3854 x 2176
  • Recording Formats : 4K
  • Input Voltage : 12 V DC
  • Input Voltage : 24 V AC
  • Remote Management : Yes
  • Indoor/Outdoor : Outdoor
  • Longest Shutter Speed : 1/30 Second
  • Maximum Operating Temperature : 122°F (50°C)
  • Image Sensor Size : 1/2.8"
  • Night Vision : Yes
  • Solid State Drive Capacity : 512 GB
  • Power Source Type : PoE
  • Power Source Type : AC
  • Power Source Type : DC
  • Package Contents :
    • MV63M-HW Network Camera
    • Quick-start and installation guide
    • MV camera hardware
    • Wall-mounting kit
  • Maximum Focal Length : 3.30 mm
  • Network (RJ-45) : Yes
  • Maximum Frame Rate : 24 fps
  • Night Vision Distance : 65.62 ft
  • Mount Type : Corner Mount
  • Mount Type : Ceiling Mount
  • Mount Type : Wall Mount
  • Ethernet Technology : Gigabit Ethernet
  • Impact Protection Rating : IK10+
  • Night Vision Type : Infrared
  • Form Factor : Mini Dome
  • Protocols : IEEE 802.1X (EAP-TLS)
  • Protocols : TLS
  • Ingress Protection Rating : IP67
  • Lens Included : Yes
  • Height : 3.7"
  • Maximum Aperture : f/2.0
  • Field of View : Diagonal: 119.7, Horizontal:101.3, Vertical: 54.4
  • Effective Camera Resolution : 8.4 Megapixel
  • Diameter : 5.2"
  • Weight (Approximate) : 2.03 lb
  • Additional Info

    Additional Info

    SKU 01468MV63MHW-BF
    Weight 2.0300
    Is Featured N/A
    Manufacturer Cisco Systems, Inc
    Manufacturer Part Number MV63M-HW
    Width 1
    Length 1
    Height 3.7"
    Product ID 01468MV63MHW
    UNSPSC N/A
    Other Part Number N/A
    Special Price N/A
