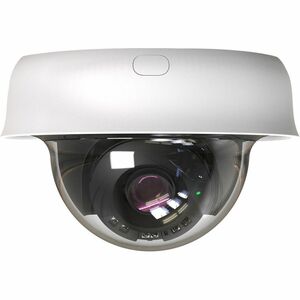

Meraki MV23M-HW 8.4 Megapixel Indoor 4K Network Camera - Dome - 98.43 ft Infrared Night Vision - H.264 - 3854 x 2176 - 3 mm- 9 mm Varifocal Lens - 3x Optical - 24 fps - CMOS - Gigabit Ethernet - Wall Mount, Ceiling Mount, Corner Mount - Audio Support - Da

Overview

The Meraki MV23, part of the third generation of MV smart cameras, combines physical security and advanced analytics in a powerful, yet compact varifocal dome form factor. With an edge architecture that minimizes physical infrastructure and software requirements, MV23 enables faster, easier deployments and greater scalability.

Security in high definition

The ultra-high-performance MV23 series camera supports up to 4K resolution for high-definition video, delivering the level of detail needed to stay on top of what matters.

Compact and easy to install, MV23 series cameras are compatible with a variety of mounting accessories, delivering the right viewing angle wherever they are placed. MV23 series cameras are ideal for monitoring entrances and exits, as well as the general perimeter, from walls, ceilings, or even corner-mount locations.

Using machine-learning-based computer vision, MV23 cameras can perform real-time object detection, classification, and tracking of people and vehicles to increase safety and provide useful insights into activity. These smart cameras deliver powerful business intelligence without compromising physical security.

Product Highlights

  • Varifocal lens dome camera
  • Robust form factor with 36°-112° horizontal FoV
  • More detailed information with up to 4K resolution
  • Guaranteed days of video with  Smart Retention
  • Night vision with IR illumination up to 30 m (98 ft)
  • Intelligent motion indexing with search engine
  • Built-in analytics likemotion search, motion recap, and motion heatmaps.
  • Support forAttribute Search
  • Machine-learning capability for intelligent object detection
  • Secure video access to ensure privacy with role-based user accounts
  • Cloud-augmented edge storage for minimal physical infrastructure
  • Built-in automatic security with secure boot and signed firmware, backed by a hardware security chip
  • Suitable for deployments of all sizes, from 1-10,000+ cameras
  • NDAA Compliant

Availability: Call or email

$1,908.50
$1,908.50
Cisco Systems, Inc

Fast shipping on all in-stock products

Quick turnaround on RFQs - email us today.

Buy from a certified veteran-owned small business (VOSB)

Questions? Call customer service at 503-208-8410.

Description

Details

Meraki MV23M-HW 8.4 Megapixel Indoor 4K Network Camera - Dome - 98.43 ft Infrared Night Vision - H.264 - 3854 x 2176 - 3 mm- 9 mm Varifocal Lens - 3x Optical - 24 fps - CMOS - Gigabit Ethernet - Wall Mount, Ceiling Mount, Corner Mount - Audio Support - Day/Night, Motion Detection, Vehicle Detection, Human Detection, Privacy Masking, Smart Object Detection, Video Content Analytics, Built-in IR LED, Built-in Microphone, Infrared Detection

OVERVIEW:

  • Limited Warranty : 5 Year
  • Video Formats : H.264
  • HD Recording : Yes
  • Storage Type : Solid State Drive
  • Maximum Power Consumption : 15.40 W
  • Connectivity Technology : Wired
  • Features : Infrared Detection
  • Features : Built-in Microphone
  • Features : Built-in IR LED
  • Features : Video Content Analytics
  • Features : Smart Object Detection
  • Features : Privacy Masking
  • Features : Human Detection
  • Features : Vehicle Detection
  • Features : Motion Detection
  • Features : Day/Night
  • Lens Type : Varifocal
  • Shortest Shutter Speed : 1/32000 Second
  • Minimum Operating Temperature : 32°F (0°C)
  • Image Sensor Type : CMOS
  • Audio Support : Yes
  • Additional Warranty Information :

    Five-year hardware warranty with advanced replacement

  • Maximum Video Resolution : 3854 x 2176
  • Recording Formats : 4K
  • Input Voltage : 12 V DC
  • Input Voltage : 24 V AC
  • Remote Management : Yes
  • Indoor/Outdoor : Indoor
  • Minimum Focal Length : 3 mm
  • Longest Shutter Speed : 1/30 Second
  • Maximum Operating Temperature : 113°F (45°C)
  • Image Sensor Size : 1/2.8"
  • Night Vision : Yes
  • Solid State Drive Capacity : 512 GB
  • Power Source Type : PoE
  • Power Source Type : AC
  • Power Source Type : DC
  • Package Contents :
    • MV23M-HW Network Camera
    • Quick-start and installation guide
    • MV camera hardware
    • Wall-mounting kit
  • Maximum Focal Length : 9 mm
  • Network (RJ-45) : Yes
  • Maximum Frame Rate : 24 fps
  • Night Vision Distance : 98.43 ft
  • Mount Type : Corner Mount
  • Mount Type : Ceiling Mount
  • Mount Type : Wall Mount
  • Ethernet Technology : Gigabit Ethernet
  • Night Vision Type : Infrared
  • Form Factor : Dome
  • Protocols : TLS
  • Lens Included : Yes
  • Height : 3.8"
  • Minimum Aperture : f/2.9
  • Maximum Aperture : f/1.6
  • Field of View : horizontal 36 - 112°
  • Optical Zoom : 3x
  • Effective Camera Resolution : 8.4 Megapixel
  • Diameter : 5.8"
  • Weight (Approximate) : 1.85 lb
