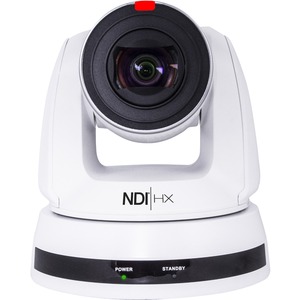

Marshall CV630-NDIW 8.5 Megapixel 4K Network Camera - Color - White - H.264, H.265 (HEVC) - 3840 x 2160 - 4.60 mm- 135 mm Zoom Lens - 30x Optical - 30 fps - CMOS - HDMI - Wall Mount, Ceiling Mount

The Marshall CV630-IP PTZ Camera captures crisp UHD video combined with smooth PTZ camera positioning and 30X optical zoom for a versatile networked video solution. NDI HX provides low latency, high quality, frame-accurate video, and audio in real time to IP workflows. NDI Tools opens up the ability to integrate more video devices and applications into your NDI production workflow.

High Performance Video Output

Featuring NDI HX with simultaneous HDMI and 3GSDI from a professional level 8-megapixel UHD sensor and smooth synchronous movements. At its core, the CV630-IP packs a powerful 8-megapixel 1/2.5" sensor capturing up to Ultra-HD 3840x2160p video at 30fps, with support for HD resolutions.

Versatile Camera Positioning

The CV630-NDI is equipped with synchronous pan, tilt, and zoom motors for smooth and silent camera movements during operation. A 30X optical zoom block provides flexibility from 4.6mm to 135mm, with a nearly 70-degree angle-of-view at its widest through close-ups at long distances.

Simultaneous Networked and Streaming Outputs

Multiple simultaneous video streams are available over HDMI, 3G-SDI, and NDI HX. Install one-cable to camera with NDI HX for all functions, simple connect to any Ethernet port - THAT'S IT - or use Ethernet for Power/Preview and other outputs (3GSDI/HDMI) for simultaneous workflows for streaming, production, or archiving.

Flexible Control Options

The CV630-NDI offers easy control over broadcast settings controllable from NDI Tools such as NDI Studio Monitor and other NDI Tools which opens the ability to integrate more networked video sources into your production workflow. Additionally, the CV630-NDI is compatible with Marshall's VS-PTC-IP PTZ Camera Controller, providing intuitive adjustment of pan/tilt/zoom, pan/tilt speeds, white balance, and more with one button dials and rocker control.

Availability: Call or email

$2,899.00
$2,899.00
Marshall Electronics, Inc

Fast shipping on all in-stock products

Quick turnaround on RFQs - email us today.

Buy from a certified veteran-owned small business (VOSB)

Questions? Call customer service at 503-208-8410.

Description

Details

Marshall CV630-NDIW 8.5 Megapixel 4K Network Camera - Color - White - H.264, H.265 (HEVC) - 3840 x 2160 - 4.60 mm- 135 mm Zoom Lens - 30x Optical - 30 fps - CMOS - HDMI - Wall Mount, Ceiling Mount

OVERVIEW:

  • Video Formats : H.265 (HEVC)
  • Video Formats : H.264
  • HD Recording : Yes
  • Connectivity Technology : Wired
  • Features : Automatic White Balance
  • Features : PTZ
  • Lens Type : Zoom
  • Image Sensor Type : CMOS
  • Maximum Video Resolution : 3840 x 2160
  • Recording Formats : 4K
  • Product Color : White
  • Remote Management : Yes
  • Minimum Focal Length : 4.60 mm
  • HDMI : Yes
  • Maximum Focal Length : 135 mm
  • Network (RJ-45) : Yes
  • Mount Type : Ceiling Mount
  • Mount Type : Wall Mount
  • Color Supported : Color
  • Minimum Aperture : f/1.6
  • Maximum Aperture : f/3.5
  • Optical Zoom : 30x
  • Effective Camera Resolution : 8.5 Megapixel
  • Weight (Approximate) : 4.40 lb
  • Additional Info

    Additional Info

    SKU 02431CV630NDIW-BF
    Weight 4.4000
    Is Featured N/A
    Manufacturer Marshall Electronics, Inc
    Manufacturer Part Number CV630-NDIW
    Width 1
    Length 1
    Height 1
    Product ID 02431CV630NDIW
    UNSPSC N/A
    Other Part Number N/A
    Special Price N/A
