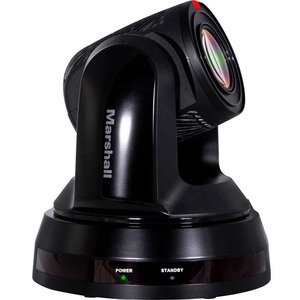

Marshall CV630-IP 8 Megapixel 4K Network Camera - Color - Black - Infrared - H.265 (HEVC), H.264, H.265 - 3840 x 2160 - 4.60 mm- 135 mm Varifocal Lens - 30x Optical - CMOS - HDMI - Desk Mount, Wall Mount, Ceiling Mount

The Marshall CV630-IP PTZ Camera captures crisp UHD video combined with smooth PTZ camera positioning and 30X optical zoom for a versatile networked video solution.

High Performance Video Output

At its core, the CV630-IP packs a powerful 8-megapixel 1/2.5" sensor capturing up to Ultra-HD 3840x2160p video, with support for HD 1920x1080p, and 1280x720p.

Versatile Camera Positioning

The CV630-IP is equipped with synchronous pan, tilt, and zoom motors for smooth and silent camera movements during operation. A 30X optical zoom block provides flexibility from 4.6mm to 135mm, with a nearly 70-degree angle-of-view at its widest.

Simultaneous Networked and Streaming Outputs

Multiple simultaneous video streams are available over HDMI, 3G-SDI, and triple-stream IP (H.265/H.264) with stereo audio input embeddable on all available outputs. PoE+ (power-over-Ethernet) provides an economical and easy solution for integrators during installation.

Flexible Control Options

The CV630-IP offers easy control over iris, shutter, white balance, focus, pan/tilt speeds, and more, controllable by IR remote, networked video management software (VMS) or RS-232/ RS-422 with support for Visca, Visca over IP, Pelco, and Onvif platforms.Additionally, the CV630-IP is compatible with Marshall's VS-PTC-IP PTZ Camera Controller, providing intuitive adjustment of pan/tilt/zoom, pan/tilt speeds, white balance, and more with with one button dials and rocker control.

Availability: Call or email

$3,141.96
$3,141.96
Marshall Electronics, Inc

Fast shipping on all in-stock products

Quick turnaround on RFQs - email us today.

Buy from a certified veteran-owned small business (VOSB)

Questions? Call customer service at 503-208-8410.

Description

Details

Marshall CV630-IP 8 Megapixel 4K Network Camera - Color - Black - Infrared - H.265 (HEVC), H.264, H.265 - 3840 x 2160 - 4.60 mm- 135 mm Varifocal Lens - 30x Optical - CMOS - HDMI - Desk Mount, Wall Mount, Ceiling Mount

OVERVIEW:

  • Video Formats : H.265
  • Video Formats : H.264
  • Video Formats : H.265 (HEVC)
  • HD Recording : Yes
  • Connectivity Technology : Wired
  • Features : PTZ
  • Lens Type : Varifocal
  • Image Sensor Type : CMOS
  • Maximum Video Resolution : 3840 x 2160
  • Recording Formats : 4K
  • Input Voltage : 12 V DC
  • Product Color : Black
  • Remote Management : Yes
  • Minimum Focal Length : 4.60 mm
  • HDMI : Yes
  • Maximum Focal Length : 135 mm
  • Network (RJ-45) : Yes
  • Mount Type : Ceiling Mount
  • Mount Type : Wall Mount
  • Mount Type : Desk Mount
  • Video Signal Format : PAL
  • Video Signal Format : NTSC
  • Night Vision Type : Infrared
  • Lens Included : Yes
  • Color Supported : Color
  • Analog Video Signal Format : 3G/HD-SDI
  • Height : 10.5"
  • Width : 10.9"
  • Minimum Aperture : f/1.6
  • Maximum Aperture : f/3.5
  • Field of View : 70°
  • Length : 12.5"
  • Optical Zoom : 30x
  • Effective Camera Resolution : 8 Megapixel
  • Weight (Approximate) : 9.16 lb
  • Additional Info

    Additional Info

    SKU 02431CV630IP-BF
    Weight 9.1600
    Is Featured N/A
    Manufacturer Marshall Electronics, Inc
    Manufacturer Part Number CV630-IP
    Width 10.9"
    Length 12.5"
    Height 10.5"
    Product ID 02431CV630IP
    UNSPSC N/A
    Other Part Number N/A
    Special Price N/A
