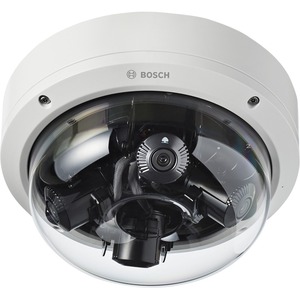

Bosch FLEXIDOME multi 12 Megapixel Indoor/Outdoor Network Camera - Color, Monochrome - Dome - White - TAA Compliant - H.265, H.264, MJPEG, H.265 (HEVC) - 2048 x 1536 - 3.70 mm- 7.70 mm Varifocal Lens - 2.1x Optical - 30 fps - CMOS - Ethernet - Wall Mount,

The FLEXIDOME multi 7000i camera is built for highquality performance, featuring four independent imagers with motorized zoom/focus lenses. It helps to simplify installation and lower costs while maintaining flexibility in coverage. With four scenes simultaneously in a single camera, it is perfect for wide area coverage, traffic intersections and building corners. When the lenses are tilted at the right angle, the camera can even cover an area up to full 360°. Additionally, the zoom capability allows the camera to obtain detailed coverage for more distant areas.

Functions

12-megapixel multi-directional overviews
Four independent 3-megapixel imagers with separate remote zoom and focus lenses capture very highquality images with a total resolution of 12 megapixels.
Each of the four imagers can be set-up flexibly with 3- axis movement along a circular track. This enables surround coverage, capturing detailed images from every angle for comprehensive video coverage with four separate views from a single IP address.

High Dynamic Range
The camera has High Dynamic Range. This is based on a multiple-exposure process that captures more details in the highlights and in the shadows even in the same scene. The result is that you can easily distinguish objects and features, for example, faces with bright backlight.
The actual dynamic range of the camera is measured using Opto-Electronic Conversion Function (OECF) analysis according to IEC 62676 Part 5. This method is used to provide a standard result which can be used to compare different cameras.

H.265 high-efficiency video encoding
The camera is designed on the most efficient and powerful H.264 and H.265/HEVC encoding platform. The camera is capable of delivering high-quality and high-resolution video with very low network load. With a doubling of encoding efficiency, H.265 has become the new compression standard of choice for IP video surveillance systems.

Two-way audio and built-in microphone
Two-way audio allows the operator to communicate with visitors or intruders via an external audio line input and output. Alternatively, there is an integrated microphone to capture crisp and clear audio. By using the integrated or external microphone, audio detection can be used to generate alarms to alert the security operator quicker and act more proactively. If required by local laws, the microphone can be blocked via a secure license key.

Availability: Call or email

$1,638.75
$1,638.75
The Bosch Group

Fast shipping on all in-stock products

Quick turnaround on RFQs - email us today.

Buy from a certified veteran-owned small business (VOSB)

Questions? Call customer service at 503-208-8410.

Description

Details

Bosch FLEXIDOME multi 12 Megapixel Indoor/Outdoor Network Camera - Color, Monochrome - Dome - White - TAA Compliant - H.265, H.264, MJPEG, H.265 (HEVC) - 2048 x 1536 - 3.70 mm- 7.70 mm Varifocal Lens - 2.1x Optical - 30 fps - CMOS - Ethernet - Wall Mount, Pipe Mount, In-ceiling, Conduit Mount, Ceiling Mount, Surface Mount, Junction Box Mount, Gang Box Mount, Pendant Mount, Pole Mount - IK10 - IP66 - Snow Resistant, Wind Resistance, Water Resistant, Dust Resistant, Vandal Resistant

OVERVIEW:

  • Video Formats : H.265 (HEVC)
  • Video Formats : MJPEG
  • Video Formats : H.264
  • Video Formats : H.265
  • HD Recording : Yes
  • Storage Type : Memory Card
  • Color Family : White
  • Connectivity Technology : Wired
  • Features : Tamper Detection
  • Features : Enter/Exit Detector
  • Features : Cross Line Detection
  • Features : Defog
  • Features : Back Light Compensation (BLC)
  • Features : Privacy Masking
  • Features : Dynamic Noise Reduction
  • Features : Day/Night
  • Features : Automatic White Balance
  • Features : Region of Interest
  • Features : Wide Dynamic Range
  • Features : SD Card Local Storage
  • Lens Type : Varifocal
  • Shortest Shutter Speed : 1/15000 Second
  • Minimum Operating Temperature : -58°F (-50°C)
  • Image Sensor Type : CMOS
  • Maximum Video Resolution : 2048 x 1536
  • Input Voltage : 24 V AC
  • Product Color : White
  • Remote Management : Yes
  • Indoor/Outdoor : Indoor/Outdoor
  • Minimum Focal Length : 3.70 mm
  • Longest Shutter Speed : 1/25 Second
  • Maximum Operating Temperature : 131°F (55°C)
  • Image Sensor Size : 1/2.7"
  • Power Source Type : AC
  • Power Source Type : PoE+
  • Maximum Focal Length : 7.70 mm
  • Network (RJ-45) : Yes
  • Maximum Frame Rate : 30 fps
  • Mount Type : Pole Mount
  • Mount Type : Pendant Mount
  • Mount Type : Gang Box Mount
  • Mount Type : Junction Box Mount
  • Mount Type : Surface Mount
  • Mount Type : Ceiling Mount
  • Mount Type : Conduit Mount
  • Mount Type : In-ceiling
  • Mount Type : Pipe Mount
  • Mount Type : Wall Mount
  • Ethernet Technology : Ethernet
  • Impact Protection Rating : IK10
  • Form Factor : Dome
  • Protocols : CHAP
  • Protocols : LLDP
  • Protocols : SOAP
  • Protocols : DDNS
  • Protocols : DNSv6
  • Protocols : DNS
  • Protocols : 802.1X
  • Protocols : SNMPv3 (MIB2)
  • Protocols : SNMPv1 (MIB2)
  • Protocols : ARP
  • Protocols : FTP
  • Protocols : RTSP
  • Protocols : ICMPv6
  • Protocols : ICMP
  • Protocols : IGMP v3
  • Protocols : IGMP v2
  • Protocols : IGMP
  • Protocols : RTP/RTCP
  • Protocols : HTTPS
  • Protocols : HTTP
  • Protocols : TCP
  • Protocols : UDP
  • Protocols : IPv6
  • Protocols : IPv4
  • Ingress Protection Rating : IP66
  • Durability : Vandal Resistant
  • Durability : Dust Resistant
  • Durability : Water Resistant
  • Durability : Wind Resistance
  • Durability : Snow Resistant
  • Lens Included : Yes
  • Color Supported : Monochrome
  • Color Supported : Color
  • Height : 4.4"
  • Maximum Operating Humidity : 100%
  • TAA Compliant : Yes
  • Maximum Aperture : f/1.9
  • Field of View : Wide: 85.1? x 62? (H x V) Tele: 38.7? x 29.0? (H x V)
  • Optical Zoom : 2.1x
  • Effective Camera Resolution : 12 Megapixel
  • Diameter : 8.7"
  • Number of Sensors : 4
  • Weight (Approximate) : 5.14 lb
  • Environmental Compliance : China Restriction of Hazardous Substances (China RoHS)
  • Environmental Compliance : Restriction of Hazardous Substances (RoHS)
  • Environmental Compliance : Waste Electrical and Electronic Equipment Directive (WEEE)
  • Additional Info

    Additional Info

    SKU 16660NDM7702A-BF
    Weight 5.1400
    Is Featured N/A
    Manufacturer The Bosch Group
    Manufacturer Part Number NDM-7702-A
    Width 1
    Length 1
    Height 4.4"
    Product ID 16660NDM7702A
    UNSPSC N/A
    Other Part Number N/A
    Special Price N/A
