JBL Professional AW566-LS 2-way Outdoor Speaker - 400 W RMS - Gray - 1600 W (PMPO) - 15" - 1.50" - 89 Hz to 18 kHz - 8 Ohm

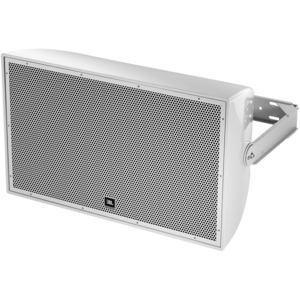

Parts are sealed on LS models (non-LS photo shown).
High Power 2-Way All Weather Loudspeaker with 1 x 15"" LF & Rotatable Horn for Life Safety Applications

The AW566-LS is a high power, lightweight, 2-way, full-range loudspeaker system comprised of the JBL Differential Drive dual voice coil and dual magnetic gap 2265H 380 mm (15 in) low-frequency driver and 2432H high-frequency 38 mm (1.5 in) exit, 75 mm (3 in) voice-coil compression driver. The large format Progressive Transition wave-guide provides excellent 60° x 60° coverage. The loudspeaker system can used in either the vertical or horizontal orientation. This loudspeaker is EN 54-24 Compliant for life safety applications.

Availability: Call or email

$3,034.69
$3,034.69

Fast shipping on all in-stock products

Quick turnaround on RFQs - email us today.

Buy from a certified veteran-owned small business (VOSB)

Questions? Call customer service at 503-208-8410.

Description

Details

JBL Professional AW566-LS 2-way Outdoor Speaker - 400 W RMS - Gray - 1600 W (PMPO) - 15" - 1.50" - 89 Hz to 18 kHz - 8 Ohm

OVERVIEW:

  • Package Contents :
    • High Power 2-Way All Weather Loudspeaker with 1 x 15" LF & Rotatable Horn
    • U-type Mounting Bracket
  • Crossover Type : 2-way
  • Product Color : Gray
  • Application/Usage : Park
  • Application/Usage : Cruise Ship
  • Application/Usage : Entertainment Center
  • Application/Usage : Theme Bar
  • Application/Usage : Sports Field
  • RMS Output Power : 400 W
  • PMPO Output Power : 1600 W
  • Woofer Driver Size : 15"
  • Durability : Corrosion Resistant
  • Durability : Weather Resistant
  • Speaker Installation : Outdoor
  • Tweeter Driver Size : 1.50"
  • Height : 19.1"
  • Width : 31.9"
  • Depth : 18.82"
  • Minimum Frequency Response : 89 Hz
  • Maximum Frequency Response : 18 kHz
  • Sensitivity : 100 dB
  • Impedance : 8 Ohm
  • Features : Dual Voice Coils
  • Features : Lightweight
  • Weight (Approximate) : 62.39 lb
  • Additional Info

    Additional Info

    SKU 05080AW566LS-BF
    Weight 62.3900
    Is Featured N/A
    Manufacturer Harman International Industries, Inc
    Manufacturer Part Number AW566-LS
    Width 31.9"
    Length 1
    Height 19.1"
    Product ID 05080AW566LS
    UNSPSC N/A
    Other Part Number N/A
    Special Price N/A
