Taoglas MA412 Storm 2in1 Screwmount Antenna LTE MIMO 2in1 - 698 MHz to 803 MHz, 824 MHz to 894 MHz, 880 MHz to 960 MHz, 1710 MHz to 1880 MHz, 1850 MHz to 1990 MHz, 1920 MHz to 2170 MHz, 2490 MHz to 2690 MHz, 3300 MHz to 3600 MHz - 8.2 dBi - Cellular Netwo

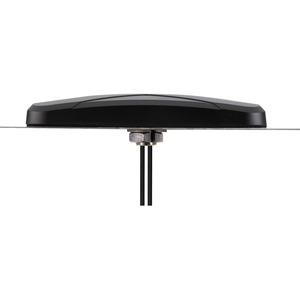

The Storm MA412 LTE MIMO antenna is a low profile, heavyduty, fully IP67 waterproof external M2M antenna for use in worldwide telematics applications which require best in class LTE performance.

This unique product, only 30mm high, delivers powerful worldwide 4G LTE MIMO antenna technology at 700/800/900/1700/1800M/1900M/2600MHz.

Typical applications

  • HD Video over LTE
  • First Responder and Emergency Services
  • Intelligent Transport Systems
  • Internet of Things (IoT market)
  • High Definition Video Broadcast Systems
  • Wireless LTE MIMO M2M Devices
  • Digital Signage
LTE 4G applications demand high speed data uplink and downlink. High efficiency and high gain MIMO antennas are necessary to achieve the required signal to noise ratio and throughput required to solve these challenges. Taoglas also takes care to have high isolation between the two MIMO antennas to prevent self-interference. The MA412 does not require a ground plane. Low loss cables are used to keep efficiency high over long cable lengths. In contrast, smaller MIMO antennas with poorer quality thinner cables will have much reduced efficiency and isolation, which would lead to a large drop in system throughput or drops, and may indeed not make a system connection at all.

We have a version with SMA(M) also as standard MA412.A.BI.003. Cable length and connector types are customizable. Conformity is declared under the following standard:

Conformity is declared under the following standard: EN55022 Class B. This is to declare that the product listed above conform to the EMC directive 2014/30/EU.

Availability: Call or email

$112.24
$112.24

Fast shipping on all in-stock products

Quick turnaround on RFQs - email us today.

Buy from a certified veteran-owned small business (VOSB)

Questions? Call customer service at 503-208-8410.

Description

Details

Taoglas MA412 Storm 2in1 Screwmount Antenna LTE MIMO 2in1 - 698 MHz to 803 MHz, 824 MHz to 894 MHz, 880 MHz to 960 MHz, 1710 MHz to 1880 MHz, 1850 MHz to 1990 MHz, 1920 MHz to 2170 MHz, 2490 MHz to 2690 MHz, 3300 MHz to 3600 MHz - 8.2 dBi - Cellular Network, Outdoor, Wireless Access Point - Black - Screw Mount - FAKRA Connector

OVERVIEW:

  • Application/Usage : Wireless Access Point
  • Application/Usage : Outdoor
  • Application/Usage : Cellular Network
  • Connector Type : FAKRA
  • Product Color : Black
  • Height : 1.22"
  • Operating Frequency Range : 3300 MHz to 3600 MHz
  • Operating Frequency Range : 2490 MHz to 2690 MHz
  • Operating Frequency Range : 1920 MHz to 2170 MHz
  • Operating Frequency Range : 1850 MHz to 1990 MHz
  • Operating Frequency Range : 1710 MHz to 1880 MHz
  • Operating Frequency Range : 880 MHz to 960 MHz
  • Operating Frequency Range : 824 MHz to 894 MHz
  • Operating Frequency Range : 698 MHz to 803 MHz
  • Width : 3.67"
  • Environmentally Friendly : Yes
  • Antenna Gain (Isotropic) : 8.2 dBi
  • Form Factor : Screw Mount
  • Country of Origin : Taiwan
  • Weight (Approximate) : 14.11 oz
  • Additional Info

    Additional Info

    SKU 06005MA412.A.BI.001-BF
    Weight 14.1100
    Is Featured N/A
    Manufacturer Taoglas
    Manufacturer Part Number MA412.A.BI.001
    Width 3.67"
    Length 1
    Height 1.22"
    Product ID 06005MA412.A.BI.001
    UNSPSC N/A
    Other Part Number N/A
    Special Price N/A
