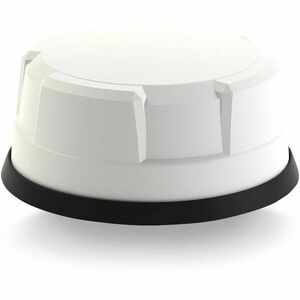

The MAKO 5G Dome is a range of high-performance 4?4 MiMo antennas covering 617-960/1710-6000MHz with optional GPS/GNSS and optional 2?2, 3?3 or 4?4, or 6?6 MiMo/Diversity at 2.4/5.0/7.2GHz.
The MAKO 5G Dome consists of up to 11 elements; four isolated high-performance antenna elements covering 617-960/1710-6000MHz offer MiMo/Diversity at cellular/LTE frequencies, up to 6 optional dual band elements covering 2.4 & 5.0/7.2GHz support MiMo/Diversity operation for WiFi and optional high-performance GPS/GNSS antenna with an integrated 26dB gain LNA and high-quality filtering offers unparalleled positioning accuracy. None of the antennas in this range require a metallic ground plane, and all maintain a high level of performance even when mounted on non-metallic surfaces.
Although the LTE elements are designed for 4?4 MiMo operation, it is possible to utilize these as 2 pairs of 2?2 MiMo for a router that has 2 SIMS (radio) in a failover configuration (i.e. only one SIM active at any time). As this configuration is using only 2 out of the 4 antennas for a single SIM, the network coverage should be checked to ensure that this use is suitable.
