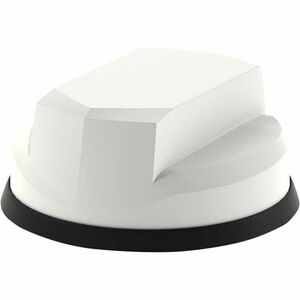

Panorama Antennas L[G]M[X]M[X]-6-60[-24-58] Antenna - Range - RF - 617 MHz to 960 MHz, 1710 MHz to 3800 MHz, 4900 MHz to 6000 MHz - 10 dB - 26 dBi - GPS, GLONASS, In-vehicle Router - White - Panel Mount, Magnetic Mount - Omni-directional - SMA Connector

The L[G]M[X]M[X]-6-60[-24-58] range has been designed to provide 2?2 4G/5G MiMo performance from 617-960/1427-6000MHz in a robust low profile package.

The flexible platform allows the main elements to be combined with a number of other functions including GPS/GNSS and up to 6?6 MiMo WiFi 2.4/4.9-7.2GHz.

The antenna is designed to be panel mounted and can be fitted on a conductive or non-conductive panel. Supplied with integrated flame retardant RG174 cables (Compliant to UN ECE R118.03 and EN45545-2) and a halogen-free flame retardant radome the antenna is suitable for many environments and applications.

The LGM variants have an integrated GPS/GNSS module supporting GPS, Glonass, Galileo and Compass with 26dB LNA gain. This GPS module features advanced filtering for LTE B13/14 designed to minimise potential in-band interference.

The antenna is available with a black or white radome which meets IK10 for vandal resistance and IP69K for ingress protection.
