Panorama Antennas CASEANT[X]4-6-60[-X] Antenna - 617 MHz to 698 MHz, 699 MHz to 798 MHz, 807MHz to 862 MHz, 880 MHz to 960 MHz, 1427 MHz to 1518 MHz, 1710 MHz to 1920 MHz, 1920 MHz to 2170 MHz, 2300 MHz to 2400 MHz, 2496 MHz to 2690 MHz, 3300 MHz to 4200

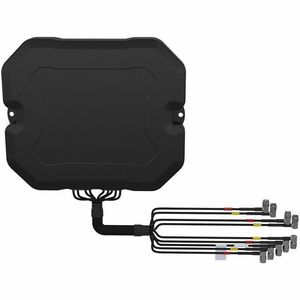

The Panorama CASEANT[[X]4-6-60-[X] range is a 4x4 MiMo antenna solution for 4G / 5G specifically designed for deployable cases.

The 4G/5G antenna elements cover 617-960/1427-6000MHz providing a robust communications link to ensure high data rates even in challenging network coverage areas. The efficient element design allows the antennas to work when the case is open or closed.

CASEANTG[5]4 variants include a GPS/GNSS module with advanced filtering covering either L1/E1/G1/B1 or L1/E1/G1/B1 & L5. Additional variants also contain 2,3 or 4 WiFi elements which cover 2.4-7.2GHz for WiFi 6e.

The antenna is supplied with integrated low loss flame retardant cables fitted with protective sleeving to assist with routing within the case and right angled connectors for easy installation.

Panorama can provide RF measurement services for case products and design of foam inserts, ducting and other installation collateral upon request. These services are sold separately.

Availability: Call or email

$260.00

Qty:

Description

Details

Panorama Antennas CASEANT[X]4-6-60[-X] Antenna - 617 MHz to 698 MHz, 699 MHz to 798 MHz, 807MHz to 862 MHz, 880 MHz to 960 MHz, 1427 MHz to 1518 MHz, 1710 MHz to 1920 MHz, 1920 MHz to 2170 MHz, 2300 MHz to 2400 MHz, 2496 MHz to 2690 MHz, 3300 MHz to 4200 MHz, 4400 MHz to 5000 MHz, ... - 6.6 dBi - Cellular NetworkCase Mount, Adhesive Mount - Omni-directional - RP-SMA Connector

OVERVIEW:

Directivity : Omni-directional

Application/Usage : Cellular Network

Connector Type : RP-SMA

Height : 0.98"

Operating Frequency Range : 6875 MHz to 7125 MHz

Operating Frequency Range : 6525 MHz to 6875 MHz

Operating Frequency Range : 6425 MHz to 6525 MHz

Operating Frequency Range : 5925 MHz to 6425 MHz

Operating Frequency Range : 5850 MHz to 5925 MHz

Operating Frequency Range : 5725 MHz to 5850 MHz

Operating Frequency Range : 5470 MHz to 5725 MHz

Operating Frequency Range : 5350 MHz to 5470 MHz

Operating Frequency Range : 5250 MHz to 5350 MHz

Operating Frequency Range : 5150 MHz to 5250 MHz

Operating Frequency Range : 2396 MHz to 2485 MHz

Operating Frequency Range : 4400 MHz to 5000 MHz

Operating Frequency Range : 3300 MHz to 4200 MHz

Operating Frequency Range : 2496 MHz to 2690 MHz

Operating Frequency Range : 2300 MHz to 2400 MHz

Operating Frequency Range : 1920 MHz to 2170 MHz

Operating Frequency Range : 1710 MHz to 1920 MHz

Operating Frequency Range : 1427 MHz to 1518 MHz

Operating Frequency Range : 880 MHz to 960 MHz

Operating Frequency Range : 807MHz to 862 MHz

Operating Frequency Range : 699 MHz to 798 MHz

Operating Frequency Range : 617 MHz to 698 MHz

Width : 9.13"

Antenna Gain (Isotropic) : 6.6 dBi

Form Factor : Adhesive Mount

Form Factor : Case Mount

Additional Info

SKU	05772CASEANTG4660D-BF
Weight	1.0000
Is Featured	N/A
Manufacturer	Panorama Antennas Ltd
Manufacturer Part Number	CASEANTG4-6-60-D
Width	9.13"
Length	1
Height	0.98"
Product ID	05772CASEANTG4660D
UNSPSC	N/A
Other Part Number	N/A
Special Price	N/A
