Taoglas Pantheon MA750 Antenna - 698 MHz to 960 MHz, 1710 MHz to 2170 MHz, 2300 MHz to 2700 MHz, 2900 MHz to 3500 MHz, 2.4 GHz to 2.5 GHz, 4.5 GHz to 5.85 GHz, 1575.42 MHz to 1602 MHz - 20 dB - Wireless Data Network, Cellular Network, OutdoorScrew Mount -

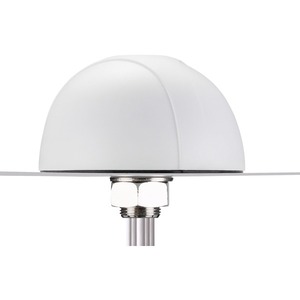

The MA.750.W Pantheon antenna is an omni-directional heavy-duty, fully IP67 waterproof external M2M antenna for use in telematics, transportation and remote monitoring applications.

This unique antenna delivers powerful MIMO antenna technology for cellular/LTE and Wi-Fi 802.11n and emerging 802.11ac, plus GPS/GLONASS for next generation multiple wireless technology systems, such as telematics. The GPS/GLONASS antenna has a Front End SAW Filter.

Examples are new fleet management and real time video applications that demand high speed video uplink and downlink. High efficiency and high gain MIMO antennas are necessary to achieve the required signal to noise ratio and throughput required to solve these challenges.

Five (5) high performance antennas are integrated into an extremely robust IP67 direct/permanent mount antenna package with excellent isolation (20dB+).

The antenna has its own ground-plane and can radiate on any mounting environment like metal or plastic without affecting performance. The cables are low loss allowing for lengths of up to 10 meters (32' and 9.70"), critical for buses, trains and other commercial transport applications.

Customized cables and connector version available.

Availability: Call or email

$288.90
$288.90

Fast shipping on all in-stock products

Quick turnaround on RFQs - email us today.

Buy from a certified veteran-owned small business (VOSB)

Questions? Call customer service at 503-208-8410.

Description

Details

Taoglas Pantheon MA750 Antenna - 698 MHz to 960 MHz, 1710 MHz to 2170 MHz, 2300 MHz to 2700 MHz, 2900 MHz to 3500 MHz, 2.4 GHz to 2.5 GHz, 4.5 GHz to 5.85 GHz, 1575.42 MHz to 1602 MHz - 20 dB - Wireless Data Network, Cellular Network, OutdoorScrew Mount - Omni-directional - SMA Connector

OVERVIEW:

  • Directivity : Omni-directional
  • Application/Usage : Outdoor
  • Application/Usage : Cellular Network
  • Application/Usage : Wireless Data Network
  • Connector Type : SMA
  • Height : 3.37"
  • Operating Frequency Range : 1575.42 MHz to 1602 MHz
  • Operating Frequency Range : 4.5 GHz to 5.85 GHz
  • Operating Frequency Range : 2.4 GHz to 2.5 GHz
  • Operating Frequency Range : 2900 MHz to 3500 MHz
  • Operating Frequency Range : 2300 MHz to 2700 MHz
  • Operating Frequency Range : 1710 MHz to 2170 MHz
  • Operating Frequency Range : 698 MHz to 960 MHz
  • Antenna Gain : 20 dB
  • Environmentally Friendly : Yes
  • Diameter : 5.73"
  • Form Factor : Screw Mount
  • Country of Origin : Taiwan
  • Weight (Approximate) : 2.84 lb
  • Additional Info

    Additional Info

    SKU 06005MA750.W.A.ABICG.003-BF
    Weight 2.8400
    Is Featured N/A
    Manufacturer Taoglas
    Manufacturer Part Number MA750.W.A.ABICG.003
    Width 1
    Length 1
    Height 3.37"
    Product ID 06005MA750.W.A.ABICG.003
    UNSPSC N/A
    Other Part Number N/A
    Special Price N/A
