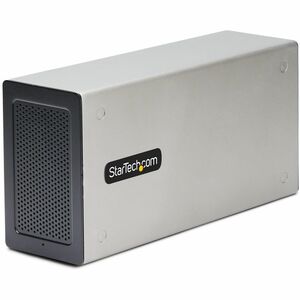

StarTech.com Thunderbolt 3 PCIe Expansion Chassis, Enclosure Box w/Dual PCI-E Slots, External PCIe Slots, 8K/4K Output Via TB3/DP 1.4, TAA - Thunderbolt 3 PCIe expansion chassis for Thunderbolt 3/4 laptops - External enclosure w/ dual PCI-E 3.0 Slots (up

Add two PCI-Express 3.0 x16 capable cards and increase the potential of a Thunderbolt 3 or 4 capable laptop, desktop, or all-in-one system. This Thunderbolt 3 PCIe Expansion Chassis lets you take advantage of the vast range of PCIe expansion cards with computers that lack PCIe slots. The chassis lets you connect an external monitor via the DisplayPort (DP) or Thunderbolt 3 ports, supporting Ultra High Definition (UHD) 4K or 8K resolutions.

Enhanced Computer Capabilities

Connect the expansion box to a Thunderbolt 3 or 4 computer with the included 3.3ft (1m) Thunderbolt-certified cable. The chassis features dual PCIe 3.0 x16 slots with 32Gbps of bandwidth that is shared dynamically between both slots (each slot supports up to 2700MBps/21.6Gbps). Add extra functionality to a host device using video capture cards, high-speed fiber or Ethernet networking, NVMe drives, FireWire, sound cards, or any other PCIe-compatible card.

Flexible Card Support

The expansions chassis supports single-slot cards to a maximum length of 8in (20.3cm), allowing current or legacy PCIe cards to be installed. The built-in fan ensures active cooling for your hardware, preventing overheating during heavy usage.

The TAA-Compliant chassis delivers up to 25W per slot, ensuring optimal performance for your connected devices. In addition, the two internal 12V 15W SATA power ports ensure the installed cards have enough power (up to 40W per card) at their disposal.

8K & 4K Monitor Support

Connect a second high-resolution monitor using the DP 1.4 or Thunderbolt 3 ports at the back of the chassis. Enjoy video resolutions of up to single 8K or 5K 60Hz or dual 4K 60Hz (other video resolutions are also supported).

Compatibility

The enclosure is driverless, enabling rapid deployment and is supported in macOS and Windows.

The chassis can be placed horizontally or vertically, adapting to your workspace. The toolless design and aluminum construction ensure fast card installation and longevity.

Note: Some expansion cards installed in the chassis may require drivers to be installed.

Availability: Call or email

$597.61
$597.61
StarTech.com

Fast shipping on all in-stock products

Quick turnaround on RFQs - email us today.

Buy from a certified veteran-owned small business (VOSB)

Questions? Call customer service at 503-208-8410.

Description

Details

StarTech.com Thunderbolt 3 PCIe Expansion Chassis, Enclosure Box w/Dual PCI-E Slots, External PCIe Slots, 8K/4K Output Via TB3/DP 1.4, TAA - Thunderbolt 3 PCIe expansion chassis for Thunderbolt 3/4 laptops - External enclosure w/ dual PCI-E 3.0 Slots (up to 21.6Gbps per slot) - For video capture/Fiber/Ethernet cards - Toolless design and aluminum construction - 8K/4K via DP 1.4/TB3 ports

OVERVIEW:

  • Limited Warranty : 2 Year
  • Color Family : Black
  • Package Contents :
    • Thunderbolt 3 Dual PCIe 3.0 Expansion Chassis - 8K 60Hz DisplayPort
    • 1 x 3.3ft [1m] Thunderbolt Host Cable
    • 1 x Power Adapter
    • 1 x Foot-Pad Set
    • 1 x Quick-Start Guide
  • Host Interface : Thunderbolt 3
  • Product Color : Black
  • Application/Usage : Desktop
  • Application/Usage : Laptop
  • DisplayPorts Quantity : 1
  • Product Material : Aluminum
  • Form Factor : Desktop
  • Environmentally Friendly : Yes
  • Height : 5.6"
  • Width : 11.1"
  • Environmental Compliance : Restriction of Hazardous Substances (RoHS)
  • Environmental Compliance : Waste Electrical and Electronic Equipment Directive (WEEE)
  • Length : 3.3"
  • Weight (Approximate) : 3.60 lb
  • TAA Compliant : Yes
  • Additional Info

    Additional Info

    SKU 032432TBT3PCIEENCLOSURE-BF
    Weight 3.6000
    Is Featured N/A
    Manufacturer StarTech.com
    Manufacturer Part Number 2TBT3-PCIE-ENCLOSURE
    Width 11.1"
    Length 3.3"
    Height 5.6"
    Product ID 032432TBT3PCIEENCLOSURE
    UNSPSC N/A
    Other Part Number N/A
    Special Price N/A
