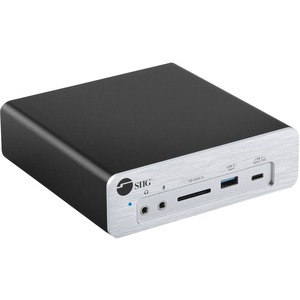

SIIG Thunderbolt 3 DP 1.4 Docking Station with Dual M.2 NVMe SSD & 96W PD - Single 8K 30Hz / 4K 144Hz or Dual 4K60Hz Resolution - Thunderbolt Daisy Chain Supported SIIG Thunderbolt 3 Docking - Dual 4K60Hz Displays / Single 8K30Hz/4K144Hz via TBT3 or DP 1.

Advanced docking station transforms a single Thunderbolt 3 port into one Thunderbolt 3 port, one DisplayPort 1.4 port, two USB 3.1 Gen2 Type A/C ports, two USB 3.1 Gen1 Type-A with BC 1.2 ports, one Gigabit Ethernet port, a SD memory card reader, and a stereo audio/microphone connectivity with PD charging up to 87W. Adds 2 storage drives via dual M Key NVME SSD capabilities

Features

  • Advanced Docking Station - transforms a single Thunderbolt 3 into one Thunderbolt 3 port, one DisplayPort 1.4 port, two USB 3.1 10Gbps Type A/C ports, two USB 3.1 Gen1 Type-A with BC 1.2 port, one Gigabit Ethernet port, SD (UHS-II) memory card reader and stereo audio/Microphone connectivity with PD charging up to 87 watts
  • Experience High Resolution Video - Allow you to connect two 4K@60Hz Ultra HD displays simultaneously through Thunderbolt 3 & DP port. A single 8K@30Hz display is supported through the source Thunderbolt 3 and DP 1.4 port
  • Dual PCIe Gen 3 NVMe M.2 - Holds two M Key 2280 form factor SSDs, adds 2 drives to your computer, increase storage capacity and enhance data transfer speed up to 1500Mbps rate for each installed SSD. Compatible with M Key PCIe NVMe/AHCI M.2 SSDs only (SSD not included)
  • USB 3.1 - Provides 2 USB-A 3.1 Gen1 with BC 1.2 (5V/2.4A) ports up to 5Gbps, one USB-A 3.1 Gen2 BC 1.2 (5V/2.4) ports up to 10Gbps, one USB-C 3.1 Gen2 port (5V/3A) up to 10Gbps to enhance your computer's performance capabilities
  • SD Memory Card Reader - SD (UHS-II) compatible, supports data transfer up to 270Mbps, and maximum capacity of 2TB
  • Wired Gigabit Ethernet - Reliable wired network connectivity through embedded 10/100/1000BASE-T Gigabit Ethernet port
  • Audio Jack - Supports two 3.5mm audio jack for stereo audio and microphone connection
  • High Power - Included 150W power adapter provides sufficient power for your connected peripherals, plus PD charging up to 87W to charge/power your laptop
  • Certifications: Intel Thunderbolt 3, RoHs, TAA, FCC, CE

More from the Manufacturer

Availability: Call or email

Regular Price: $584.79

Special Price $549.70

Regular Price: $584.79

Special Price $549.70

Fast shipping on all in-stock products

Quick turnaround on RFQs - email us today.

Buy from a certified veteran-owned small business (VOSB)

Questions? Call customer service at 503-208-8410.

Description

Details

SIIG Thunderbolt 3 DP 1.4 Docking Station with Dual M.2 NVMe SSD & 96W PD - Single 8K 30Hz / 4K 144Hz or Dual 4K60Hz Resolution - Thunderbolt Daisy Chain Supported SIIG Thunderbolt 3 Docking - Dual 4K60Hz Displays / Single 8K30Hz/4K144Hz via TBT3 or DP 1.4 - TB3 Laptop Docking Station with DisplayPort - Dual M.2 2280 NVMe SSD Enclosure - 87W/96W Power Delivery - SD UHS-II 4.0 / 2x 10Gbps USB-C & A / 2x USB-A 5Gbps Hub - fast charging - 3.5mm Audio & Mic Jack - 2 years warranty - TAA complia

OVERVIEW:

  • Limited Warranty : 2 Year
  • Connectivity Technology : Wired
  • Package Contents :
    • Thunderbolt 3 DP 1.4 Docking Station with Dual M.2 NVMe SSD & 87W Power Delivery
    • Power Adapter 20V/7.5A
    • Thunderbolt 3 Cable (50cm)
    • User Manual
  • Host Interface : Thunderbolt 3
  • Maximum Power Supply Wattage : 87 W
  • Height : 1.67"
  • Width : 5.86"
  • Environmentally Friendly : Yes
  • Audio Line Out : Yes
  • Depth : 5.55"
  • Weight (Approximate) : 1.98 lb
  • Country of Origin : Taiwan
  • TAA Compliant : Yes
  • Device Supported : Notebook/Desktop PC
  • Number of USB 3.1 Gen 1 Type-A Ports : 2
  • USB Type-C : Yes
  • USB Type-C Detail : 1 x 24-pin, Thunderbolt 3 USB-C, Female, Source connection + 1 x 24-pin, USB 3.1 Type-C, Female + 1 x 24-pin, Thunderbolt 3 USB-C, Female, Output
  • Network (RJ-45) : Yes
  • Number of DisplayPort Outputs : 1
  • DisplayPort : Yes
  • Microphone : Yes
  • Thunderbolt : Yes
  • Additional Info

    Additional Info

    SKU 03127JUDK0K11S1-BF
    Weight 1.9800
    Is Featured N/A
    Manufacturer SIIG, Inc
    Manufacturer Part Number JU-DK0K11-S1
    Width 5.86"
    Length 1
    Height 1.67"
    Product ID 03127JUDK0K11S1
    UNSPSC N/A
    Other Part Number N/A
    Special Price N/A
