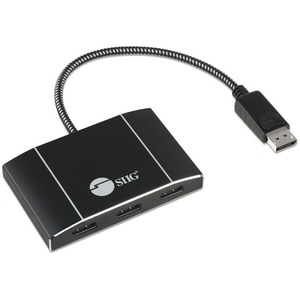

  • SIIG 8K 1x3 DisplayPort 1.4 to DisplayPort MST Hub Splitter - DP input to 3-port DP output - 32.4Gbps video bandwidth - Supports 4K HDR and HDCP 2.2 - Triple 4K DisplayPort 1.4 to DisplayPort MST Hub Splitter - Dual 4K 60Hz or Triple 4K 30Hz DisplayPort M

SIIG 8K 1x3 DisplayPort 1.4 to DisplayPort MST Hub Splitter - DP input to 3-port DP output - 32.4Gbps video bandwidth - Supports 4K HDR and HDCP 2.2 - Triple 4K DisplayPort 1.4 to DisplayPort MST Hub Splitter - Dual 4K 60Hz or Triple 4K 30Hz DisplayPort M Zoom

SIIG 8K 1x3 DisplayPort 1.4 to DisplayPort MST Hub Splitter - DP input to 3-port DP output - 32.4Gbps video bandwidth - Supports 4K HDR and HDCP 2.2 - Triple 4K DisplayPort 1.4 to DisplayPort MST Hub Splitter - Dual 4K 60Hz or Triple 4K 30Hz DisplayPort M

  • Connect up to three DisplayPort displays to single DisplayPort 1.4 output with Multi-Stream Transport (MST) technology to boost your productivity
  • Provides multiple display modes such as Mirror mode same content on each display, Extended mode with individual content on each display, and Panoramic Video Wall mode which combines multiple monitors to use as one large display
    Note: Mirror mode using a NVIDIA Surround technology graphics adapter is limited to 2 displays. Video Wall mode requires either a AMD Eyefinity, Intel, or NVIDIA Surround technology graphics adapter
  • Total Bandwidth 32.4Gbps (max): Supports one UHD 8K (7680 x 4320)@30Hz display, two 4K@60Hz displays, three or four 4K (3840x2160)@30Hz or less displays. Other resolution combinations which are less than or equal to 4K@30Hz will work also. For example, three 2K, three 1080p, 4K+2K+1080p, etc.
    Note: The total combined bandwidth among all connected displays must NOT exceed the total maximum bandwidth
  • Compatible with DisplayPort 1.4 with MST graphics cards with AMD Eyefinity, Intel Collage or NVIDIA Surround technology
  • Supports 4K HDR and HDCP 2.2
  • Reset button allows re-detection of all the displays if any of the displays are not detected
  • Plug-n-play, trouble-free set up without complicated hardware or driver installation
  • High quality aluminum housing decreases surrounding electro magnetic interference and provides optimal video quality
    Note: Replaces CE-DP0D12-S1

    Compatibility Notes:
    - Requires either AMD Eyfinity or Intel Collage or NVIDIA Surround technology graphics adapter for Video Wall mode
    - Requires a DisplayPort 1.4 graphics card to support minimum of 3 external displays
    - Mirror mode using Windows Display Uility and NVIDIA Utility is limited to 2 displays

Availability: Call or email

$99.53
$99.53

Fast shipping on all in-stock products

Quick turnaround on RFQs - email us today.

Buy from a certified veteran-owned small business (VOSB)

Questions? Call customer service at 503-208-8410.

Description

Details

SIIG 8K 1x3 DisplayPort 1.4 to DisplayPort MST Hub Splitter - DP input to 3-port DP output - 32.4Gbps video bandwidth - Supports 4K HDR and HDCP 2.2 - Triple 4K DisplayPort 1.4 to DisplayPort MST Hub Splitter - Dual 4K 60Hz or Triple 4K 30Hz DisplayPort Monitors - Video Splitter for Extended Desktop Mode - DP 1.4 Multi-Stream Transport Hub / DSC / HBR3 / 7.1 ch audio - Reset button - 2 years warranty - MST for Windows PCs Only - Mac OS does not support MST function and only for Mirror mode

OVERVIEW:

  • Limited Warranty : 2 Year
  • Cable Type : DisplayPort
  • Package Contents :
    • 1x3 Triple 4K DisplayPort 1.4 to DisplayPort MST Hub Splitter
    • Micro-USB power cable
    • Quick Start Guide
  • Cable Characteristic : Splitter Cable
  • Product Color : Black
  • Compatibility :

    Microsoft Surface Book

    Microsoft Tablet:

    • Surface Pro 2
    • Surface Pro 3
    • Surface Pro 4

    AMD Graphics Card:

    • RX560
    • RX570
    • Radeon 7200 Series
  • Environmentally Friendly : Yes
  • Country of Origin : NA
  • Connector Type on First End : DisplayPort 1.4 Digital Audio/Video - Male
  • Connector on First End Details : 1 x 20-pin DisplayPort 1.4 Digital Audio/Video - Male
  • Connector Type on Second End : Micro USB - Female
  • Connector Type on Second End : DisplayPort 1.4 Digital Audio/Video - Female
  • Weight (Approximate) : 0.28 lb
  • Connector on Second End Details : 1 x 5-pin Micro USB - Female
  • Connector on Second End Details : 3 x 20-pin DisplayPort 1.4 Digital Audio/Video - Female
  • Device Supported : Audio/Video Device
  • Device Supported : Tablet
  • Device Supported : Notebook
  • Device Supported : Desktop Computer
  • Device Supported : Graphics Card
  • Device Supported : Monitor
  • Data Transfer Rate : 32.4 Gbit/s
  • Supported Resolution : 7680 x 4320
  • Features : Eyefinity Technology
  • Features : Extended Display Mode
  • Features : Mirror Display Mode
  • Features : Display Stream Compression (DSC)
  • Features : EMI Protection
  • Features : Plug & Play
  • Features : HDCP 2.2
  • Features : HDR Support
  • Features : Multi-Stream Transport (MST) Support

    • Additional Info

    Additional Info

    SKU 03127CEDP0P11S1-BF
    Weight 0.2800
    Is Featured N/A
    Manufacturer SIIG, Inc
    Manufacturer Part Number CE-DP0P11-S1
    Width 1
    Length 1
    Height 1
    Product ID 03127CEDP0P11S1
    UNSPSC N/A
    Other Part Number N/A
