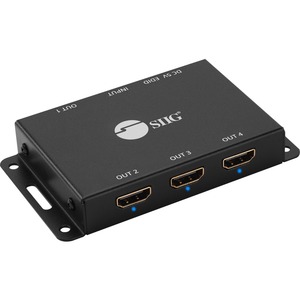

SIIG 4 Port HDMI 2.0 HDR Mini Splitter Amplifier with EDID Management - 4 Port HDMI Splitter- 4K60Hz- 1x4 HDMI Splitter- HDR- HDCP 2.2- HDMI 4K Splitter with EDID management - 4 Port 4K HDMI Splitter 1 in 4 out Video auto downscaling- 7.1-ch Audio- HDMI S

Distributes HDMI video/audio signals from one HDMI source to 4 HDMI displays while maintaining signal quality

  • Distributes HDMI video and audio from a single source to up to 4 HDMI displays simultaneously while maintaining signal quality
  • Compliant with HDMI 2.0 and HDCP 2.2
  • Supports 18Gbps bandwidth
  • Supports 4K (3840x2160) @60Hz (YUV 4:4:4 8bit), HDR 4K (3840x2160) @60Hz (YUV 4:2:0 10bit), 3D, xvYCC, x.v.Color & Deep Color
  • Supports Dolby Digital, DTS-HD and Dolby TrueHD audio
  • Resolution downscaling feature detects and configures the video resolution automatically according to the capabilities of each connected monitor
  • Allows simultaneous 4K and 1080P output. Supports simultaneous mixed 4K and 1080p display outputs.
  • EDID and firmware management feature for maximum compatibility now and into the future, offers widest range of monitor/display/TV support from either pre-programmed EDID or EDID learning from the connected displays. Firmware upgradeable (via Mini USB port) for expanded compatibility
  • Low heat generation with sturdy metal housing provides excellent heat dissipation, durability, and minimizes EMI/RFI noise interference. Low heat generation and ESD protection to guarantee stability and reliable performance

More from the Manufacturer

Availability: Call or email

$97.28
$97.28

Fast shipping on all in-stock products

Quick turnaround on RFQs - email us today.

Buy from a certified veteran-owned small business (VOSB)

Questions? Call customer service at 503-208-8410.

Description

Details

SIIG 4 Port HDMI 2.0 HDR Mini Splitter Amplifier with EDID Management - 4 Port HDMI Splitter- 4K60Hz- 1x4 HDMI Splitter- HDR- HDCP 2.2- HDMI 4K Splitter with EDID management - 4 Port 4K HDMI Splitter 1 in 4 out Video auto downscaling- 7.1-ch Audio- HDMI Splitter Metal Housing - 3840x2160 60Hz - Power LED Indicator - USB-A to Micro USB Power Cable - Wall Mountable- TAA Compliant - 3 years warranty

OVERVIEW:

  • Limited Warranty : 3 Year
  • Maximum Video Resolution : 3840 ? 2160
  • Input Voltage : 5 V DC
  • Package Contents :
    • 4-Port HDMI 2.0 HDR Mini Splitter Amplifier with EDID Management
    • USB Type-A to Micro USB cable
    • Quick Start Guide
  • Maximum Operating Distance : 49.21 ft
  • Maximum Video Bandwidth : 600 MHz
  • Product Material : Metal
  • Country of Origin : Taiwan
  • TAA Compliant : Yes
  • Height : 0.7"
  • Environmentally Friendly : Yes
  • Width : 2.4"
  • Length : 3.6"
  • HDMI In : Yes
  • HDMI Out : Yes
  • Weight (Approximate) : 6.40 oz
  • USB : Yes
  • Number of HDMI Inputs : 1
  • Number of HDMI Outputs : 4
  • Additional Info

    Additional Info

    SKU 03127CEH23L11S1-BF
    Weight 6.4000
    Is Featured N/A
    Manufacturer SIIG, Inc
    Manufacturer Part Number CE-H23L11-S1
    Width 2.4"
    Length 3.6"
    Height 0.7"
    Product ID 03127CEH23L11S1
    UNSPSC N/A
    Other Part Number N/A
    Special Price N/A
