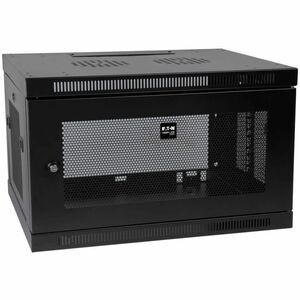

Eaton Tripp Lite Series SmartRack 6U Low-Profile Switch-Depth-Plus Wall-Mount Mini Rack Enclosure - For Server - 6U Rack Height x 19" Rack Width x 20.50" Rack Depth - Wall Mountable - Black - Steel - 200 lb Maximum Weight Capacity - 90.70 lb Static/Statio

The SRW6UDP SmartRack 6U Low-Profile Switch-Depth-Plus Wall-Mount Rack Enclosure Cabinet is designed to house EIA-standard 19-inch rack equipment in network wiring closets, retail locations, classrooms, back offices and other areas with limited floor space where you need equipment to be secure, organized and out of the way. Constructed from heavy-duty steel with a durable black powder-coated finish, the cabinet has a maximum load capacity of 200 pounds.

The side panels and front door lock securely to help prevent damage, tampering or theft. The front, top, bottom and removable side panels are vented, which allows air to flow freely and keep equipment cool. The reversible front door can open left or right by rotating the cabinet 180° before mounting. Convenient top and bottom ports allow easy cable routing.

The SRW6UDP comes fully assembled and ready to mount to the wall, or use Tripp Lite's optional SRCASTER rolling caster kit to make it a mobile rack. Square and threaded mounting holes and numbered rack spaces make equipment installation easy. The vertical mounting rails adjust in 7/8-inch increments to accommodate equipment up to 20.5 inches deep, such as network switches and patch panels.

More from the Manufacturer

Availability: Call or email

$405.11
$405.11
Eaton Corporation

Fast shipping on all in-stock products

Quick turnaround on RFQs - email us today.

Buy from a certified veteran-owned small business (VOSB)

Questions? Call customer service at 503-208-8410.

Description

Details

Eaton Tripp Lite Series SmartRack 6U Low-Profile Switch-Depth-Plus Wall-Mount Mini Rack Enclosure - For Server - 6U Rack Height x 19" Rack Width x 20.50" Rack Depth - Wall Mountable - Black - Steel - 200 lb Maximum Weight Capacity - 90.70 lb Static/Stationary Weight Capacity

OVERVIEW:

  • Limited Warranty : 5 Year
  • Form Factor : Wall Mountable
  • Package Contents :
    • SmartRack 6U Low-Profile Switch-Depth-Plus Wall-Mount Rack Enclosure Cabinet
    • 12 x M6 Screws
    • 12 x M6 Cage Nuts
    • 12 x M6 Cup Washers
    • 12 x 12-24 Screws
    • Removable Mounting Plate
    • 3 x Mounting Plate Screws
    • 2 x Keys
    • Owner's Manual
  • Color Family : Black
  • Assembly Required : No
  • Application/Usage : Server
  • Product Color : Black
  • Country of Origin : NA
  • Product Material : Steel
  • Maximum Weight Capacity : 200 lb
  • Environmentally Friendly : Yes
  • Static/Stationary Weight Capacity : 90.70 lb
  • Height : 14.6"
  • Environmental Compliance : Restriction of Hazardous Substances (RoHS)
  • Width : 23.6"
  • Depth : 21.7"
  • Rack Height : 6U
  • Rack Width : 19"
  • Rack Depth : 20.50"
  • Weight (Approximate) : 45.19 lb
  • Additional Info

    Additional Info

    SKU 01731SRW6UDP-BF
    Weight 45.1900
    Is Featured N/A
    Manufacturer Eaton Corporation
    Manufacturer Part Number SRW6UDP
    Width 23.6"
    Length 1
    Height 14.6"
    Product ID 01731SRW6UDP
