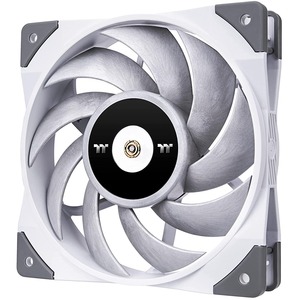

Thermaltake TOUGHFAN 12 Cooling Fan - 1 Pack - 4.72" Maximum Fan Diameter - 1 x Fan(s) - 436.5 gal/min Maximum Airflow - 2000 rpm - Hydraulic Bearing - 4 PIN PWM - White - 1 - Case - 4.6 Year Life

Thermaltake TOUGHFAN 12 White PWM-controlled high static pressure fan features an optimized structure to maximize high-end cooling needs and fulfill users' wishes to add the color white to the series.

Powerful and Noiseless

TOUGHFAN 12 White high static pressure fan can perform at a maximum operating speed of up to 2000 RPM, producing a consistent airflow of 58.35 CFM with 2.41 mm-H2O static pressure, and maintaining a low audio noise level of 22.3 dB-A.

Exceptional Blade Design

Featuring high tensile strength and low thermal expansion coefficient materials, the fan blade is built with special liquid crystal polymer (LCP), a compound which minimizes vibration when the fan is operating at full speed.

Metal-Reinforced Motor Hub

The TOUGHFAN's center is constructed with a full steel motor hub providing enhanced stability and durability.

The 2nd Generation Hydraulic Bearing

The 2nd generation hydraulic bearing incorporates a new shaft design with inside etches allowing preservation of lubricant on both sides whilst reducing noise during operation. Lowering audible levels and extending lifespan.

Anti-Vibration Mounting System

The in-mold injection anti-vibration rubber pads dampen the vibration of the fan allowing the fan to spin at higher levels without compromising noise levels. The fan is designed with 80% coverage for all corners, maintaining low noise levels when in operation.

Availability: Call or email

$24.99
$24.99
Thermaltake Technology Co., Ltd

Fast shipping on all in-stock products

Quick turnaround on RFQs - email us today.

Buy from a certified veteran-owned small business (VOSB)

Questions? Call customer service at 503-208-8410.

Description

Details

Thermaltake TOUGHFAN 12 Cooling Fan - 1 Pack - 4.72" Maximum Fan Diameter - 1 x Fan(s) - 436.5 gal/min Maximum Airflow - 2000 rpm - Hydraulic Bearing - 4 PIN PWM - White - 1 - Case - 4.6 Year Life

OVERVIEW:

  • Number of Fans : 1
  • Limited Warranty : 2 Year
  • Connectors : 4 PIN PWM
  • Fan Bearing Type : Hydraulic Bearing
  • Rated Current : 120 mA
  • Product Color : White
  • Fan Speed (Min) : 500 rpm
  • Fan Speed (Max) : 2000 rpm
  • Application/Usage : Case
  • Maximum Airflow : 436.5 gal/min
  • Country of Origin : NA
  • Noise Levels (A-Weighted) : 22.3 dB(A)
  • Fan Life : 4.6 Year
  • Maximum Fan Diameter : 4.72"
  • Maximum Air Pressure : 2.41mmH2O
  • Fan Height : 4.72"
  • Fan Width : 4.72"
  • Fan Depth : 0.98"
  • Weight (Approximate) : 7.50 oz
  • Additional Info

    Additional Info

    SKU 03386CLF117PL12WTA-BF
    Weight 7.5000
    Is Featured N/A
    Manufacturer Thermaltake Technology Co., Ltd
    Manufacturer Part Number CL-F117-PL12WT-A
    Width 1
    Length 1
    Height 1
    Product ID 03386CLF117PL12WTA
    UNSPSC N/A
    Other Part Number N/A
    Special Price N/A
