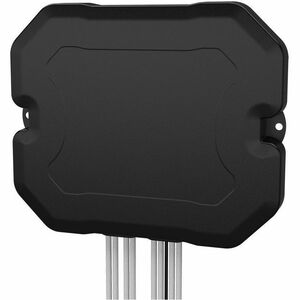

Panorama Antennas 4x4 MiMo 4G/5G Adhesive Mount Antenna - 617 MHz - 960 MHz, 1427 MHz - 6000 MHz, 2396 MHz - 7125 MHz, 1559 MHz - 1612 MHz - 26 dB - Cellular Network, Wireless Data Network, GPSAdhesive Mount, Screw Mount - Omni-directional - SMA Connector

The Panorama BAT[X]M4 range is a discrete or covert 4x4 MiMo antenna solution for 4G / 5G with the option of GPS/GNSS, and 2x2, 3x3 or 4x4 dual band 2.4/5.0-7.2GHz WiFi 6e.

The 4G/5G antenna elements cover 617-960/1427-6000MHz to provide a robust communications link to ensure high data rates even in challenging network coverage areas.

The antenna can include a GPS/GNSS module with advanced filtering for either L1/E1/G1/B1 only or dual band L1/E1/G1/B1 with L5/E5a

The antenna is IP55 rated and designed to be mounted on or under a vehicle dashboard or parcel shelf but can be mounted on any nonconductive surface. Versions without GPS can be mounted vertically to a wall or panel.

The BAT range is supplied with integrated low loss flame retardant cables which meet the requirements of UN ECE R118 and EN45545-2
