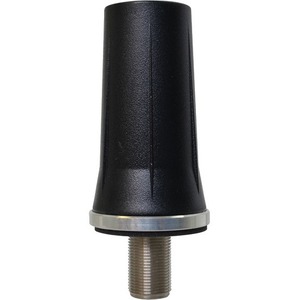

  • Mobile Mark RMM-UMB-DN-BLK Antenna - 750 MHz to 1250 MHz, 1650 MHz to 2700 MHz - 5 dB - Cellular Network - Black - Surface/Magnetic Mount - SMA, N-connector Connector

Mobile Mark RMM-UMB-DN-BLK Antenna - 750 MHz to 1250 MHz, 1650 MHz to 2700 MHz - 5 dB - Cellular Network - Black - Surface/Magnetic Mount - SMA, N-connector Connector Zoom

Mobile Mark RMM-UMB-DN-BLK Antenna - 750 MHz to 1250 MHz, 1650 MHz to 2700 MHz - 5 dB - Cellular Network - Black - Surface/Magnetic Mount - SMA, N-connector Connector

These antennas complement Mobile Mark's broad line of antenna products for Cellular applications.

The RM3 Dual Band is a medium profile (3" H, 76 mm) antenna with performance of 3 & 5 dBi max (frequency dependent). A ground plane is required to maximize gain. The antenna radome consists of black ASA UV resistant plastic, with a heavy duty metal base and threaded feed thru, or a direct N version is also available.

The bottom of the RM series is outfitted with a gasket for complete sealing. A mounting nut is provided. Magnetic mount versions, MGRM-900/1900 allow use without drilling a hole.

The RMM-UMB is a broadband version capable of simultaneous operation on worldwide bands from 750 MHz up to 2.7 GHz, with excellent response.

A direct N version is also available along with the standard surface mount.

Note: Groundplane required for optimal performance.

Availability: Call or email

$50.23
$50.23

Fast shipping on all in-stock products

Quick turnaround on RFQs - email us today.

Buy from a certified veteran-owned small business (VOSB)

Questions? Call customer service at 503-208-8410.

Description

Details

Mobile Mark RMM-UMB-DN-BLK Antenna - 750 MHz to 1250 MHz, 1650 MHz to 2700 MHz - 5 dB - Cellular Network - Black - Surface/Magnetic Mount - SMA, N-connector Connector

OVERVIEW:

  • Limited Warranty : 2 Year
  • Application/Usage : Cellular Network
  • Connector Type : N-connector
  • Connector Type : SMA
  • Product Color : Black
  • Height : 3"
  • Operating Frequency Range : 1650 MHz to 2700 MHz
  • Operating Frequency Range : 750 MHz to 1250 MHz
  • Antenna Gain : 5 dB
  • Diameter : 1.70"
  • Form Factor : Surface/Magnetic Mount

    • Additional Info

    Additional Info

    SKU 05694RMMUMBDNBLK-BF
    Weight 1.0000
    Is Featured N/A
    Manufacturer Mobile Mark, Inc
    Manufacturer Part Number RMM-UMB-DN-BLK
    Width 1
    Length 1
    Height 3"
    Product ID 05694RMMUMBDNBLK
    UNSPSC N/A
    Other Part Number N/A
    Special Price N/A
