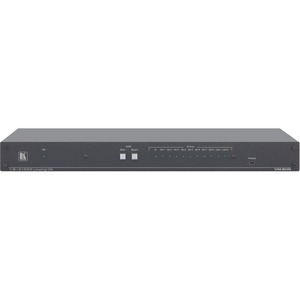

Kramer 1:8+2 4K UHD HDMI Distribution Amplifier - 1 x HDMI In - 10 x HDMI Out

The VM-8HN is a looping distribution amplifier for 4K UHD HDMI signals. It reclocks and equalizes the signal and distributes it to eight identical outputs and two loops. It supports resolutions up to 4K@60Hz (4:2:0) UHD.

  • Resolution Support - Up to 4K@60Hz (4:2:0) UHD.
  • Max. Data Rate - 10.2Gbps (3.4Gbps per data channel).
  • HDTV Compatible.
  • HDCP Compliant.
  • HDMI Support - Deep Color, x.v.Color™, HDMI Uncompressed Audio Channels, Dolby TrueHD, DTS-HD.
  • 3D Pass-Through.
  • Kramer Equalization & re-Klocking™ Technology - Rebuilds the digital signal to travel longer distances.
  • Default EDID - For fast and efficient connection of the unit.
  • Video Wall Support - Mutes the video on all displays and simultaneously unmutes them when all inputs are ready; with selectable output delay.
  • Automatic 5V Turn Off - When no active input signal is detected, the unit turns off 5V on the output allowing attached devices to power off.
  • MAC Settings - Enables and disables HDCP support on the input allowing the source to transmit a non-HDCP signal if required.
  • Force RGB - Modifies the EDID saved on the input to support RGB format (i.e., not YUV format).
  • Active Output LED Indicators.
  • 2 Looping Outputs - Allow monitoring and cascading to additional DAs.
  • Worldwide Power Supply - 100-240V AC.

Availability: Call or email

$753.64
$753.64
Kramer Electronics LTD

Fast shipping on all in-stock products

Quick turnaround on RFQs - email us today.

Buy from a certified veteran-owned small business (VOSB)

Questions? Call customer service at 503-208-8410.

Description

Details

Kramer 1:8+2 4K UHD HDMI Distribution Amplifier - 1 x HDMI In - 10 x HDMI Out

OVERVIEW:

  • Limited Warranty : 7 Year
  • Input Voltage : 240 V AC
  • Package Contents :
    • Rack Ears
    • Power cord
  • Height : 1.8"
  • Width : 19"
  • Depth : 7.2"
  • HDMI In : Yes
  • HDMI Out : Yes
  • Weight (Approximate) : 3.31 lb
  • Number of HDMI Inputs : 1
  • Number of HDMI Outputs : 10
  • Additional Info

    Additional Info

    SKU 02286VM8HN-BF
    Weight 3.3100
    Is Featured N/A
    Manufacturer Kramer Electronics LTD
    Manufacturer Part Number VM-8HN
    Width 19"
    Length 1
    Height 1.8"
    Product ID 02286VM8HN
    UNSPSC N/A
    Other Part Number N/A
    Special Price N/A
