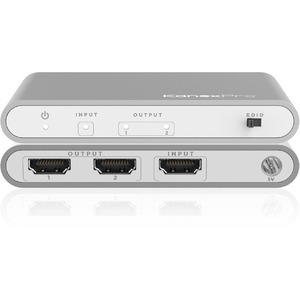

KanexPro 4K HDMI 1x2 Splitter with HDCP2.2 - 60 Hz - 50 Hz to 60 Hz - 4096 x 2160 - 328.08 ft Maximum Operating Distance - 1 x HDMI In - 2 x HDMI Out

The KanexPro SP-HD20-1X24K is an one input, two output HDMI Distribution Amplifier engineered to split 4K quality videos or high res images from one source to two 4K displays with resolutions up to 4K@60Hz and HDCP2.2 specifications. Built-in EDID management allows optimal resolution to be selected and properly outputted to avoid response time and delays.

The conforming outputs also have the ability of buffering and amplifying all the HDMI signals. It can achieve long distance transmission of HDMI signals up to 50 feet (15 meters) or can be combined with our HDBaseT™ Extenders to route distances up to 330 feet (100 meters).

Applications

The 1x2 DA fully conforms to the latest High Speed HDMI specifications with HDCP 2.2. This HDMI splitter is optimized for distributing HDMI video and embedded multi-channel digital audio to multiple 4K display environments such as residential or digital signage markets and computer lab applications.

Availability: Call or email

Regular Price: $59.76

Special Price $56.18

Regular Price: $59.76

Special Price $56.18

Fast shipping on all in-stock products

Quick turnaround on RFQs - email us today.

Buy from a certified veteran-owned small business (VOSB)

Questions? Call customer service at 503-208-8410.

Description

Details

KanexPro 4K HDMI 1x2 Splitter with HDCP2.2 - 60 Hz - 50 Hz to 60 Hz - 4096 x 2160 - 328.08 ft Maximum Operating Distance - 1 x HDMI In - 2 x HDMI Out

OVERVIEW:

  • Limited Warranty : 3 Year
  • Maximum Video Resolution : 4096 x 2160
  • Minimum Frequency : 50 Hz
  • Input Voltage : 5 V DC
  • Package Contents :
    • 4K HDMI 1x2 Splitter with HDCP2.2
    • 5V, 1A Power Supply
    • Operation Manual
  • Maximum Operating Distance : 328.08 ft
  • Maximum Frequency : 60 Hz
  • Height : 0.7"
  • Width : 2.5"
  • Depth : 6.1"
  • HDMI In : Yes
  • HDMI Out : Yes
  • Weight (Approximate) : 6.35 oz
  • Number of HDMI Inputs : 1
  • Number of HDMI Outputs : 2
  • Additional Info

    Additional Info

    SKU 04813SPHD201X24K-BF
    Weight 6.3500
    Is Featured N/A
    Manufacturer KanexPro
    Manufacturer Part Number SP-HD20-1X24K
    Width 2.5"
    Length 1
    Height 0.7"
    Product ID 04813SPHD201X24K
    UNSPSC N/A
    Other Part Number N/A
