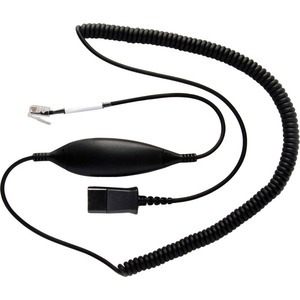

Quick Disconnect cable required for telecom headsets to enable direct connection to most standard telephone system handsets.
PRODUCT FEATURES
- Universal Connection Lead
- Fits most standard RJ11 Headset sockets
- 80-200cm coiled cable
- Compatible with JPL and Plantronics QD corded headsets
- The Plantronics compatible Quick Disconnect (QD) capability allows the headset to detach without losing the call
- EAN: 5060126951858
The BL-10+P Geni lead is perfect for offices where there is more than one type of phone system in use - the BL-10+P Geni lead comes with a compatibility switch which allows you to adjust to the correct type of handset quickly, rather than having to have two separate leads for your phones.
Simple 8-position slide adjustment - no need for a user manual. Simply slide the switch until a dial tone is heard. Standard RJ11 connector connects to virtually all telephones using a standard modular plug. Standard Plantronics compatible Quick Disconnect plug to headset.
Works with any JPL or Plantronics headset equipped with Quick Disconnect. Built-in low-current microphone amplifier enables perfect operation with telephones that require extra signal gain.
AC Output Voltage: 30mV
Insertion Gain: 11.5dB Nom Min 10.5dB, Max 12.5dB
Bias Voltage: 1.58v DC Nom, Min 1.53v DC, Max 1.76v DC
Bias Voltage: 1.49v DC Nom, Min 1.38v DC, Max 1.71v DC
