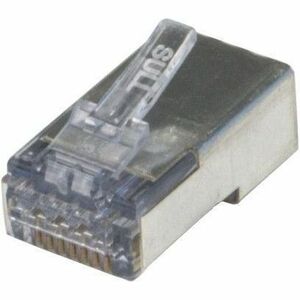

Platinum Tools ezEX38 - ezEX-RJ45 Cat5e Connector - 100 / Bag - 1 x RJ-45 Network - Male - Shielding - Clear - TAA Compliant

The patented ezEX38 connectors feature a unique integrated Hi-Lo stagger load bar and allows big' conductors to pass through the front end of the connector making it easy to verify the wiring sequence before terminating. These connectors are used with Cat5e (Sm. Cat6) cabling and is recommended for PoE/PoE+ and Data applications. These connectors are also available in shielded (STP) internal ground style. The termination tool for these connectors is the EXO Crimp Frame and EXO-EX Die (100061C).

  • Hi-Lo stagger to isolate each conductor
  • Simple one piece/pass through design, no bars or liners
  • Insulation Diameter (Conductor) Size range: .033" - .038" (0.84 -0.97mm)
  • Max Outer Diameter: .290" (7.36mm)
  • 50 micron gold plated contacts
  • 5e/6/6A compliant
  • Solid or Stranded 24-22 AWG
  • TIA, TAA, RoHS, UL & FCC compliant
  • Typically used with Cat5e (Sm. 6)
  • Shielded (STP) Internal Ground available
  • Made in the USA
  • US Patents 9,543,729 B2; 10,116,082 B2; & 10,573,990 B2. Foreign patents.


Availability: Call or email

$218.48
$218.48

Fast shipping on all in-stock products

Quick turnaround on RFQs - email us today.

Buy from a certified veteran-owned small business (VOSB)

Questions? Call customer service at 503-208-8410.

Description

Details

Platinum Tools ezEX38 - ezEX-RJ45 Cat5e Connector - 100 / Bag - 1 x RJ-45 Network - Male - Shielding - Clear - TAA Compliant

OVERVIEW:

  • Connector Type : RJ-45 Network - Male
  • Color Family : Clear
  • Connector Details : 1 x RJ-45 Network - Male
  • Product Color : Clear
  • Connector Gender : Male
  • Contact Plating : Gold
  • Country of Origin : United States
  • Shielding : Yes
  • TAA Compliant : Yes
  • Compatible Wire Gauge : 22-24 AWG
  • Features : Pass-thru
  • Features : Crimp Connector
  • Features : PoE+
  • Features : PoE
  • Additional Info

    Additional Info

    SKU 21647105026-BF
    Weight 1.0000
    Is Featured N/A
    Manufacturer NSI Industries
    Manufacturer Part Number 105026
    Width 1
    Length 1
    Height 1
    Product ID 21647105026
    UNSPSC N/A
    Other Part Number N/A
    Special Price N/A
