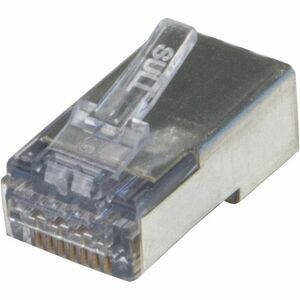

NSI ezEX44 Network Connector - 100 Piece - 1 x RJ-45 Network - Male - Shielding - Metal

ezEX-RJ45(44) Pass-Through RJ45 Connectors, CAT6 Shielded with Internal Ground - 100pcs in Bulk Bag

• ezEX-RJ45 (ezEX44 series) pass-through RJ45 connectors
• ezEX44 connectors are designed for cables with 0.039" - 0.044" (1.0 - 1.12mm) insulation diameter
• Shielded with internal ground
• Package includes 100 pieces
• Bulk bag packaging
• 0.280" (7.11mm) max cable outer diameter
• 0.039" - 0.044" (1.0 - 1.12mm) max insulation diameter (conductors)
• Compatible with solid or stranded 24 - 22AWG twisted pair cable
• 50 micron gold plated contacts
• Hi-Lo stagger to isolate each conductor
• Simple one piece/pass through design does not require bars or liners
• Compatible with CAT5E cables
• TAA, TIA, RoHS, UL & FCC compliant
• US Patents 9,543,729 B2; 10,116,082 B2; & 10,573,990 B2. Foreign patents.
• Rated for data and PoE applications
• Recommended crimp tools: 100061 or 12520
