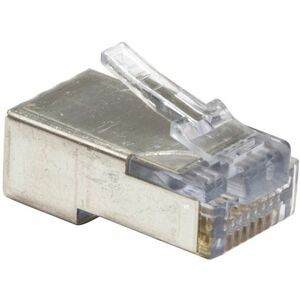

NSI EZ-RJ45 Network Connector - 50 - 1 x RJ-45 Network - Male - Shielding - Metal

EZ-RJ45 Pass-Through RJ45 Connectors, CAT5E/6 Shielded with Internal Ground - 50pcs in Bulk Bag

• EZ-RJ45 pass-through RJ45 connectors
• Shielded with internal ground
• Package includes 50 pieces
• Bulk bag packaging
• 0.260" (6.60mm) max cable outer diameter
• 0.040" (1.016mm) max insulation diameter (conductors)
• Compatible with solid or stranded 24 - 23AWG twisted pair cable
• 50 micron gold plated contacts
• Substantially improve noise immunity at all frequencies, especially above 30 MHz when cable balance starts to significantly degrade
• Fully shielded products provide reduced pair-to-pair crosstalk, alien crosstalk, and considerably improved immunity to noise at all frequencies
• Maintaining the twists to the point of termination significantly decreases crosstalk and markedly increases performance
• Connector design allows the wires to pass through the connector so the twists in each pair can be pulled closer to the contacts than conventional plugs
• Recommended for data applications only
• Not recommended for PoE applications
• Rated for up to 1G bandwidth
• Category 6 performance per EIA/TIA B.2. FCC compliant, UL rated. RoHS compliant
• Recommended crimp tools: 100062, 100054 or 100004
