Eaton Tripp Lite Series 40/100G Singlemode 9/125 OS2 Fiber Optic Cable (12F MTP/MPO-APC F/F), LSZH, Yellow, 5 m (16.4 ft.) - 16.40 ft Fiber Optic Network Cable for Switch, Patch Panel, Network Device - First End: 1 x MTP/MPO Network - Female - Second End:

100 GbE Cable Supports Higher Bandwidths Needed for Data Networking
As the amount of traffic in data networks grows, so does the need for devices and fiber cables to support higher bandwidths in enterprise applications in wiring closets, telecom rooms and data centers. This singlemode 9/125 OS2 cable is an ideal choice for 100G Ethernet applications up to 100 meters (328 feet) at 1550 nm. It is also backward compatible with 10 Gb, 25 Gb and 40 Gb networks, so you can future-proof your current application for an eventual upgrade to 100 Gb.

100% Tested for Low Insertion Loss and Back Reflection

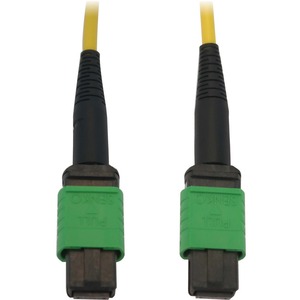

The 12-fiber MTP/MPO APC connectors with green housings help minimize back reflection with low insertion loss.

Yellow Jacket Helps Avoid Misidentification That Can Cause Costly Downtime
The OS2-rated cable has a yellow jacket to identify it as singlemode in a crowded patch panel or switch and prevent it from becoming accidentally disconnected. The round low-smoke zero-halogen (LSZH) jacket limits the amount of toxic smoke emitted in case of combustion, making it suitable for poorly ventilated areas.

Availability: Call or email

$200.00
$200.00
Eaton Corporation

Fast shipping on all in-stock products

Quick turnaround on RFQs - email us today.

Buy from a certified veteran-owned small business (VOSB)

Questions? Call customer service at 503-208-8410.

Description

Details

Eaton Tripp Lite Series 40/100G Singlemode 9/125 OS2 Fiber Optic Cable (12F MTP/MPO-APC F/F), LSZH, Yellow, 5 m (16.4 ft.) - 16.40 ft Fiber Optic Network Cable for Switch, Patch Panel, Network Device - First End: 1 x MTP/MPO Network - Female - Second End: 1 x MTP/MPO Network - Female - 400 Gbit/s - LSZH, OFNR - 9/125 µm - Green

OVERVIEW:

  • Limited Warranty : Lifetime
  • Cable Type : Fiber Optic
  • Color Family : Green
  • Fiber Optic Mode : Single-mode
  • Product Color : Green
  • Jacket Color : Yellow
  • Environmentally Friendly : Yes
  • Fiber Optic Cable Core/Cladding Specification : 9/125 µm
  • Connector Color : Black
  • Country of Origin : NA
  • Cable Length : 16.40 ft
  • Connector Type on First End : MTP/MPO Network - Female
  • Connector on First End Details : 1 x MTP/MPO Network - Female
  • Connector Type on Second End : MTP/MPO Network - Female
  • Connector on Second End Details : 1 x MTP/MPO Network - Female
  • Jacket Type : OFNR
  • Jacket Type : LSZH
  • Device Supported : Network Device
  • Device Supported : Patch Panel
  • Device Supported : Switch
  • Data Transfer Rate : 400 Gbit/s
  • Features : Angled Physical Contact (APC)
  • Features : Stranded
  • Features : Bendable
  • Additional Info

    Additional Info

    SKU 01731N390B05M12AP-BF
    Weight 1.0000
    Is Featured N/A
    Manufacturer Eaton Corporation
    Manufacturer Part Number N390B-05M-12-AP
    Width 1
    Length 1
    Height 1
    Product ID 01731N390B05M12AP
    UNSPSC N/A
    Other Part Number N/A
    Special Price N/A
