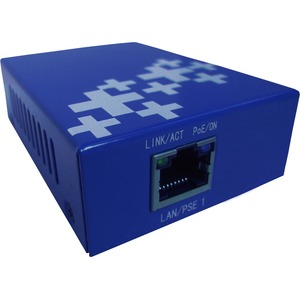

4XEM 1-Port 100M 10/100 Mbps PoE Extender

Deliver both data and power over Ethernet and beyond 100 meters to a PoE network device with 4XEM'S 100M 10/100 PoE Extender. This durable and high quality PoE Extender supports 10/100Mbps data rates and delivers IEEE 802.3 at power levels up to 25.5W. Powered via PoE inputs, the extender does not require local power. Simply plug and play with no configuration required. Multiple extenders can be cascaded to reach up to 500 meters. Go long!

Problem it solves: Cost effective solution to easily get juice to a network camera, IP phone or other network powered device beyond the 100 meter PoE limit.

4XEM gear is respected industry wide for its high performance, premium quality and durability.

More from the Manufacturer

Availability: Call or email

$34.73
$34.73
4XEM Corporation

Fast shipping on all in-stock products

Quick turnaround on RFQs - email us today.

Buy from a certified veteran-owned small business (VOSB)

Questions? Call customer service at 503-208-8410.

Description

Details

4XEM 1-Port 100M 10/100 Mbps PoE Extender

OVERVIEW:

  • Limited Warranty : 1 Year
  • Additional Information : PoE Functions

    PoE standard

    IEEE 802.3af Power over Ethernet / PSE

    IEEE 802.3at Power over Ethernet / PSE

    PoE Pin definition

    Endspan?12?36? Defaulting

    Midspan?45?78? Optional

    PoE ports

    Max Watts: 15.4 Watts

    Max Watts: 25.5 Watts

    Hardware

    Ports

    2x10/100M Auto-sensing (LS101)

    3x10/100M Auto-sensing (LS102)

    5x10/100M Auto-sensing (LS105)

    Cabling

    Cat.5 UPT cable ?≤100m?

    LED indicator

    Power, Link, Act, PoE

    Dimension(L*W*H)

    86mm*64mm*25mm

    Enviornment

    Working Temp.: 0??55?

    Storage Temp: -40??70?

    Operating Humidity: 10%?90%,Non-condensing

    Storage Humidity: 5%?90% Non-condensing

    Power

    PoE inputs

    Watts

    Max 5 W

    Network Function

    Standards

    IEEE 802.3, 802.3u, 802.3x, 802.3af, 802.3at CSMA/CD, TCP/IP

    Function

    Compatible with IEEE 802.3af PD devices

    PoE power priority

    Wire-speed forwarding

    IEEE802.3X Full duplex flow control and Backpressure

    Half duplex flow control
  • Height : 1"
  • Width : 2.5"
  • Length : 3.4"
  • Additional Info

    Additional Info

    SKU 010124XLS101-BF
    Weight 1.0000
    Is Featured N/A
    Manufacturer 4XEM Corporation
    Manufacturer Part Number 4XLS101
    Width 2.5"
    Length 3.4"
    Height 1"
    Product ID 010124XLS101
    UNSPSC N/A
    Other Part Number N/A
