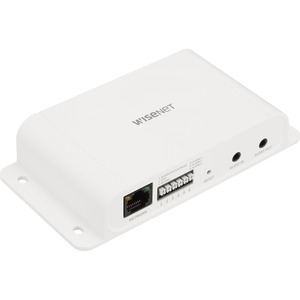

Hanwha Techwin SPM-4210 Network I/O Box - Plug-in Installation, Microphone, PoE - White

The SPM-4210 is an accessory for Wisenet PTZ Plus cameras. The Network I/O Box provides 4-configurable I/O ports & Audio I/O. It conveniently installs without requiring a direct connection to the camera. Powered by PoE. Compatible with:
XNP-9300RW / XNP-9250R / XNP-9250
XNP-8300RW / XNP-8250R / XNP-8250
XNP-6400RW / XNP-6400R / XNP-6400

Availability: Call or email

$192.73
$192.73

Fast shipping on all in-stock products

Quick turnaround on RFQs - email us today.

Buy from a certified veteran-owned small business (VOSB)

Questions? Call customer service at 503-208-8410.

Description

Details

Hanwha Techwin SPM-4210 Network I/O Box - Plug-in Installation, Microphone, PoE - White

OVERVIEW:

  • Device Supported : Fire Alarm
  • Device Supported : PTZ Camera
  • Color Family : White
  • Product Color : White
  • Additional Information :
    • Audio In: Selectable(microphone in/line in)
    • Audio Out: Line out, Maximum output level: 1Vrms
    • Ethernet: RJ-45 (10/100BASE-T)
    • Application Programming Interface: SUNAPI (HTTP API)
    • Webpage Language: Web Viewer English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
    • Web Viewer: Support, Plugin-free
    • Memory: 4GB RAM, Flash 256MB
    • Operating Temperature / Humidity: -40°C~+60°C(-40°F ~ +140°F) / Less than 95% RH(Non-condensing) Start up should be done at above -30°C
    • Storage Temperature / Humidity: -50°C~+60°C (-58°F~+140°F) / Less than 95% RH(Non-condensing)
    • Input Voltage: PoE(IEEE802.3af, Class3)
    • Power Consumption: Maximum 4.5W
    • RAL Code: RAL9003
    • Protocol: IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, ICMP, ARP, DNS, LLDP
    Alarm I/O:
    • Configurable 4 Ports
    • 12 V DC output, maximum load 50 mA
    Audio Compression
    • G.711 u-law /G.726 Selectable
    • G.726(ADPCM) 8KHz, G.711 8KHz
    • G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps
    • AAC-LC: 48Kbps at 16KHz
    Security
    • HTTPS(SSL) Login Authentication
    • Digest Login Authentication
    • IP Address Filtering
    • User access log
    • 802.1X Authentication(EAP-TLS, EAP-LEAP)
    • Device Certificate(Hanwha Techwin Root CA)
  • Compatibility : Hanwha Techwin Wiper PTZ Cameras:
    • 4K 30x IR XNP-9300RW
    • 4K 25x IR XNP-9250R
    • 4K 25x XNP-9250
    • 6MP 30x IR Wiper XNP-8300RW
    • 6MP 25x IR XNP-8250R
    • 6MP 25x XNP-8250
    • 2MP 40x XNP-6400RW
    • 2MP 40x XNP-6400R
    • 2MP 40x XNP-6400
  • Height : 1.1"
  • Width : 2.9"
  • Features : PoE
  • Features : Microphone
  • Features : Plug-in Installation
  • Depth : 5.6"
  • Weight (Approximate) : 6.03 oz
