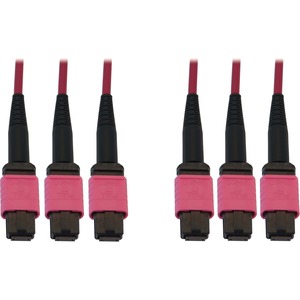

Eaton Tripp Lite Series 40/100/400G Multimode 50/125 OM4 Fiber Optic Cable (3x8F MTP/MPO-PC F/F), LSZH, Magenta, 23 m (75.5 ft.) - 75.46 ft Fiber Optic Network Cable for Network Device, Switch, Patch Panel - First End: 3 x MTP/MPO Network - Female - Secon

40/100/400 GbE Cable Supports Higher Bandwidths Needed for High-Density Data Networking
The N858B-23M-3X8MG is a premium multimode fiber optic cable that supports 400 Gb Ethernet speeds for transmitting data and voice signals over short distances. It is designed to support higher bandwidths in cloud services, hyperscale data centers, telecom applications and equipment OEM companies. This multimode 50/125 OM4 cable is an ideal choice for 400 Gb Ethernet applications up to 100 meters (328 feet) at 850 nm. It is also backward compatible with 10 Gb and 25 Gb networks, so you can future-proof your current application for an eventual upgrade to 100 Gb or 400 Gb.

Magenta-Colored Jacket Helps Avoid Misidentification That Can Cause Costly Downtime
The OM4-rated cable has a magenta jacket to identify it as multimode in a crowded patch panel or switch and prevent it from becoming accidentally disconnected. The round low-smoke zero-halogen (LSZH) jacket limits the amount of toxic smoke emitted in case of combustion, making it suitable for poorly ventilated areas. The connectors' slim boots and magenta housings allow easy one-handed installation and removal of the cable.

Availability: Call or email

Regular Price: $1,061.21

Special Price $997.54

Regular Price: $1,061.21

Special Price $997.54

Fast shipping on all in-stock products

Quick turnaround on RFQs - email us today.

Buy from a certified veteran-owned small business (VOSB)

Questions? Call customer service at 503-208-8410.

Description

Details

Eaton Tripp Lite Series 40/100/400G Multimode 50/125 OM4 Fiber Optic Cable (3x8F MTP/MPO-PC F/F), LSZH, Magenta, 23 m (75.5 ft.) - 75.46 ft Fiber Optic Network Cable for Network Device, Switch, Patch Panel - First End: 3 x MTP/MPO Network - Female - Second End: 3 x MTP/MPO Network - Female - 400 Gbit/s - Trunk Cable - LSZH, OFNR - 50/125 µm - 1 Piece

OVERVIEW:

  • Limited Warranty : Lifetime
  • Cable Type : Fiber Optic
  • Cable Characteristic : Trunk Cable
  • Fiber Optic Mode : Multi-mode
  • Jacket Color : Magenta
  • Environmentally Friendly : Yes
  • Fiber Optic Cable Core/Cladding Specification : 50/125 µm
  • Connector Color : Magenta
  • Connector Color : Black
  • Environmental Certification : EcoLogo
  • Country of Origin : NA
  • Cable Length : 75.46 ft
  • Connector Type on First End : MTP/MPO Network - Female
  • Connector on First End Details : 3 x MTP/MPO Network - Female
  • Connector Type on Second End : MTP/MPO Network - Female
  • Connector on Second End Details : 3 x MTP/MPO Network - Female
  • Jacket Type : OFNR
  • Jacket Type : LSZH
  • Device Supported : Patch Panel
  • Device Supported : Switch
  • Device Supported : Network Device
  • Data Transfer Rate : 400 Gbit/s
  • Boot Type : Slim
  • Features : Polished Connector (PC)
  • Features : Bendable
  • Features : Stranded
  • Additional Info

    Additional Info

    SKU 01731N858B23M3X8MG-BF
    Weight 1.0000
    Is Featured N/A
    Manufacturer Tripp Lite by Eaton
    Manufacturer Part Number N858B-23M-3X8MG
    Width 1
    Length 1
    Height 1
    Product ID 01731N858B23M3X8MG
    UNSPSC N/A
    Other Part Number N/A
