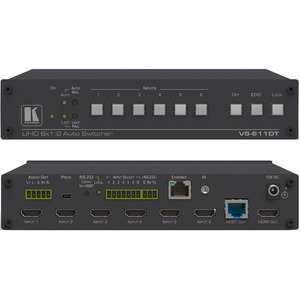

VS-611DT is a high-performance automatic switcher for HDMI video signals with resolution up to 4K@60Hz (4:2:0). With six HDMI inputs, the unit can automatically or manually switch to a predefined or last connected input whenever the currently active video signal is interrupted or whenever a higher-priority video signal is introduced. The output signal is distributed to HDBaseT and HDMI 4K@60Hz (4:2:0) outputs.
- Max. Data Rate - 8.91Gbps (2.97Gbps per graphic channel).
- Max. Resolution - 4K@60Hz (4:2:0) and WUXGA.
- HDTV Compatible.
- HDCP Compliant - Works with sources that support HDCP repeater mode.
- HDMI Support - Deep Color, Ethernet, ARC, 7.1 PCM.
- Customized Audio Output - De-embed the audio from the HDMI input and route it to the balanced stereo audio line out, or de-embed HDMI ARC from the output and route it to the balanced stereo audio line out.
- Features Kramer reKlocking™ Technology - Rebuilds the digital signal to travel longer distances.
- Step-in Master Support.
- Auto-Power Off - When no HDMI input for 30 seconds (selectable).
- Automatic Input Detection & Selection.
- HDCP On/Off Switching.
- EDID Configuration Options.
- Selectable Switching - Manual or fast auto-switching according to last connected or preset priority.
- Full HDBaseT Certification - Including bidirectional RS-232, Ethernet, IR and POE.
- HDBaseT Extended Reach - Up to 100m at 4K@60Hz (4:2:0).
- POE Source for HDBaseT Receivers.
- Contact Closure - For remote manual switching override.
- Firmware Upgrade - Over mini-USB, RS-232 or RJ-45 Web page.
- Varied Control Options - Front panel keyboard, HDBaseT Ethernet, RS-232 local and over HDBaseT.
- Built-in Web Server.
- Software Support - For Protocol 3000, K-Router Plus, EDID Designer, K-Upload.
APPLICATIONS
- Mid-sized meeting/conference rooms
- Mid - to large-sized lecture rooms
