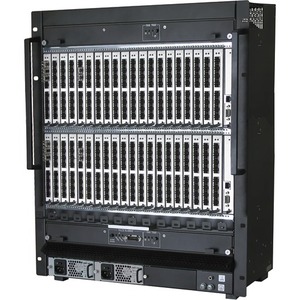

Black Box DKM FX HD Video and Peripheral Matrix Switch, 288-Port - 2560 x 1600 - 1 x Network (RJ-45) - 2 x USB - 1 x DVI - 13U - Rack-mountable

Quick Facts

  • A Scalable, Highly Reliable HD video and peripheral matrix switching and DVI routing system.
  • Very flexible. Any port can be an input or an output.
  • Holds 36 modular cards for up to 288 I/O ports.
  • Supports high-quality, full-frame DVI-D video.

Further Details
  • Terabit-speed switching backplane.
  • Nearly instantaneous video switching. Virtually no delay or blanking.
  • Full HD compatible. Boasts digital resolutions up to 2560 x 1600.
  • Various interface cards available (USB HID/2.0, RS-232, and others).
  • Can be used with remote DKM and DKM FX Extenders for extra-long links.
  • Modular, no fixed ports. Moves, adds, and changes are quick and easy.
  • Choose from CATx and single-mode fiber SFP modular card interfaces. Single-mode fiber interfaces will also work over multimode fiber.
  • Enables mixing of media on inputs/outputs-CATx in and fiber out, or vice versa.
  • Supports rich, digital audio for a full multimedia experience.
  • Includes a control card. Manage via KVM, network, or serial console.
  • Rackmountable 13U-high chassis.

Availability: Call or email

$79,981.30
$79,981.30
Black Box Corporation

Fast shipping on all in-stock products

Quick turnaround on RFQs - email us today.

Buy from a certified veteran-owned small business (VOSB)

Questions? Call customer service at 503-208-8410.

Description

Details

Black Box DKM FX HD Video and Peripheral Matrix Switch, 288-Port - 2560 x 1600 - 1 x Network (RJ-45) - 2 x USB - 1 x DVI - 13U - Rack-mountable

OVERVIEW:

  • Graphic Mode : WQXGA
  • Form Factor : Rack-mountable
  • Package Contents :
    • DKM FX HD Video and Peripheral Matrix Switch, 288-Port
    • Controller Card
    • 2 x Power Supply Modules With Power Cords
    • 2 x Fan Trays And An Exchangeable Filter Pad
    • DB9 Serial Control Cable
    • Catx Crossover Cable
    • Rackmounting Hardware
    • CD With User Manual And Java Application
  • Network (RJ-45) : Yes
  • Maximum Video Resolution : 2560 x 1600
  • Rack Height : 13U
  • Height : 22.8"
  • USB : Yes
  • Width : 19"
  • Environmentally Friendly : Yes
  • Depth : 12"
  • Weight (Approximate) : 76.28 lb
  • DVI : Yes
  • Country of Origin : Germany
  • Number of Network (RJ-45) Ports : 1
  • Number of USB Ports : 2
  • Number of DVI Ports : 1
  • Additional Info

    Additional Info

    SKU 01312ACX288-BF
    Weight 76.2800
    Is Featured N/A
    Manufacturer Black Box Corporation
    Manufacturer Part Number ACX288
    Width 19"
    Length 1
    Height 22.8"
    Product ID 01312ACX288
    UNSPSC N/A
    Other Part Number N/A
    Special Price N/A
