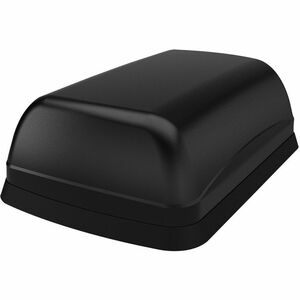

Panorama Antennas 4X4 MiMo 4G/5G IOT Antenna - 698 MHz - 960 MHz, 1427 MHz - 4200 MHz, 2396 MHz - 7125 MHz - 12 dB - Cellular Network, Wireless Data Network, GPSOmni-directional - SMA Connector

The L[X]A[X]M4-7-42[-X] MiMo antenna is designed to be a one size fits all solution for IOT applications. The robust low profile housing contains 4x 4G LTE / 5G NR elements covering 698-960/1427-4200MHz. Versions of the product also contain up to 4x optional WiFi elements supporting WiFi 6e 2.4/5.150-7.125GHz and optional L1 only or L1/L5 GPS/GNSS.

The housing is constructed from robust, flame retardant, impact resistant plastic. The subtle, curved design makes the product hardert to vandalise and the IK10 rating ensures that the product is suitable for use in tough environments and devices located in public areas. The housing is UV stable and approved to IP69K for ingress protection.

The product is supplied with integrated low loss flame retardant cables approved to UN ECE R118 and fitted connectors offer plug and play connectivity for a huge range of devices.

The L[X]A[X]M4-7-42[-X] can be installed on conductive or non-conductive panels without significant detriment to performance
