HPE 6100 48G Class4 PoE 4SFP+ 370W Switch - 48 Ports - Manageable - Gigabit Ethernet, 10 Gigabit Ethernet - 10/100/1000Base-T, 10GBase-X - 3 Layer Supported - Modular - 30.60 W Power Consumption - 370 W PoE Budget - Twisted Pair, Optical Fiber - PoE Ports

Be the first to review this product

$3,761.73
OR

Quick Overview

Aruba 6100 Switch Series

The Aruba CX 6100 Switch Series is modern family of entrylevel access switches ideal for enterprise branch offices andSMB networks. Optimized for reliable, simple and secure access, the CX 6100 switches provide a convenient wired access solution for enterprise networks supporting IoT, mobile and cloud applications.

The CX 6100 series is based on the Aruba ASIC architecture with the programmable AOS-CX operating system used across the entire Aruba CX portfolio for a more consistent, more efficient operator experience. This layer 2 switch series has convenient built-in high speed uplinks with up to 370W of PoE to support IoT devices such as security cameras and wireless APs, and includes acompact and fanless model ideal for use in quiet work spaces. With robust QoS, support for static routing, and IPv6, the CX 6100 also simplifies ownership with no software licensing requirements..

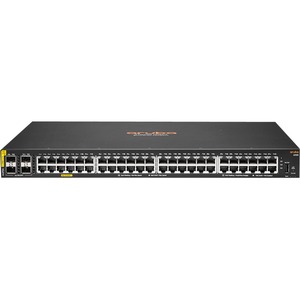

HPE 6100 48G Class4 PoE 4SFP+ 370W Switch - 48 Ports - Manageable - Gigabit Ethernet, 10 Gigabit Ethernet - 10/100/1000Base-T, 10GBase-X - 3 Layer Supported - Modular - 30.60 W Power Consumption - 370 W PoE Budget - Twisted Pair, Optical Fiber - PoE Ports

Double click on above image to view full picture

Zoom Out
Zoom In

Details

HPE 6100 48G Class4 PoE 4SFP+ 370W Switch - 48 Ports - Manageable - Gigabit Ethernet, 10 Gigabit Ethernet - 10/100/1000Base-T, 10GBase-X - 3 Layer Supported - Modular - 30.60 W Power Consumption - 370 W PoE Budget - Twisted Pair, Optical Fiber - PoE Ports - 1U - Rack-mountable, Wall Mountable, Surface Mount

OVERVIEW:

  • Manageable : Yes
  • PoE (RJ-45) Port : Yes
  • Layer Supported : 3
  • Media Type Supported : Optical Fiber
  • Media Type Supported : Twisted Pair
  • Total Number of Network Ports : 48
  • PoE Budget : 370 W
  • Networking Standards : IEEE 802.3af
  • Networking Standards : IEEE 802.1x
  • Networking Standards : IEEE 802.1Q
  • Networking Standards : IEEE 802.1ab
  • Networking Standards : IEEE 802.1p
  • Networking Standards : IEEE 802.1w
  • Networking Standards : IEEE 802.1D
  • Networking Standards : IEEE 802.1s
  • Networking Standards : IEEE 802.3az
  • Networking Standards : IEEE 802.3at
  • Networking Standards : IEEE 802.3
  • Ethernet Technology : 10 Gigabit Ethernet
  • Ethernet Technology : Gigabit Ethernet
  • Total Number of Expansion Slots : 4.0
  • Network (RJ-45) : Yes
  • Compatible Rack Unit : 1U
  • Network Technology : 10GBase-X
  • Network Technology : 10/100/1000Base-T
  • Expansion Slot Type : SFP+
  • Uplink Port : Yes
  • Power Source : Power Supply
  • Form Factor : Surface Mount
  • Form Factor : Wall Mountable
  • Form Factor : Rack-mountable
  • Modular : Yes
  • Height : 1.7"
  • Number of Power Supplies Supported : 1
  • Width : 17.4"
  • Number of SFP+ Slots : 4
  • Port/Expansion Slot Details : 4 x 10 Gigabit Ethernet Expansion Slot
  • Port/Expansion Slot Details : 48 x Gigabit Ethernet PoE
  • Number of Power Supplies Installed : 1
  • Depth : 12"
  • Power Consumption : 30.60 W
  • Weight (Approximate) : 11.07 lb
  • Additional Information

    SKU 04096JL675A#ABG-BF
    Weight 11.0700
    Is Featured N/A
    Manufacturer Hewlett Packard Enterprise
    Manufacturer Part Number JL675A#ABG
    Width 17.4"
    Length 1
    Height 1.7"
    Product ID 04096JL675A#ABG
    UNSPSC N/A
    Other Part Number N/A
    Special Price N/A
