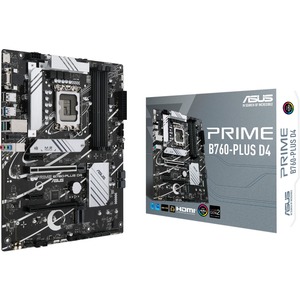

Asus Prime B760-PLUSD4 Desktop Motherboard - Intel B760 Chipset - Socket LGA-1700 - ATX - Pentium Gold, Celeron, Core Processor Supported - 128 GB DDR4 SDRAM Maximum RAM - DIMM, UDIMM - 4 x Memory Slots - Gigabit Ethernet - 2.5Gigabit Ethernet - HDMI - Di

ASUS Prime series motherboards are expertly engineered to unleash the full potential of 13th Gen Intel® Core™ Processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME B760-PLUS D4 provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features.

FLEXIBILITY

Comprehensive controls form the foundation of the ASUS PRIME series. The PRIME B760-PLUS D4 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.

Intelligent Control

ASUS Intelligent Control makes your PC smart. Along with taking care of complex tuning and dynamically optimizing essential aspects of your system, it offers intelligently simplified options for newcomers to PC DIY, as well as more comprehensive features for seasoned veterans.

All-Around Energy EfficiencyThe Power Saving function contains several settings can easily optimize power consumption and maximize energy savings. You can enable a CPU power limit, darken Aura lighting, and set the fan profile to a power saving mode. You can also toggle the Power Saver plan that is built into Microsoft Windows.

COOLING
PRIME B760-PLUS D4 motherboard is engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads.

M.2 Heatsink

M.2 heatsink wards off throttling that can occur with M.2 storage during sustained transfers. The heatsink is held in place by captive screws, and these removable captive screws help reduce risk of drops or loss during heatsink removal.

PERFORMANCE

The PRIME B760-PLUS D4 motherboard is built to handle the high core counts and bandwidth demands of 13th Gen Intel® Core™ Processors. ASUS B760 motherboard provides all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible data transfer options.

Robust Power Design

Stable power is essential to extract every last bit of performance out of Intel® processors. The PRIME B760-PLUS D4 is geared to cater to the demands of these high-core-count CPUs.

ProCool Connector

Proprietary connectors augment the motherboard's link to the PSU with 8 pin connectors that pass 12 volts of power directly to the processors. Each jack features solid pins that can handle more current than hollow-pin connectors.

Availability: Call or email

$197.79
$197.79
ASUS Computer International

Fast shipping on all in-stock products

Quick turnaround on RFQs - email us today.

Buy from a certified veteran-owned small business (VOSB)

Questions? Call customer service at 503-208-8410.

Description

Details

Asus Prime B760-PLUSD4 Desktop Motherboard - Intel B760 Chipset - Socket LGA-1700 - ATX - Pentium Gold, Celeron, Core Processor Supported - 128 GB DDR4 SDRAM Maximum RAM - DIMM, UDIMM - 4 x Memory Slots - Gigabit Ethernet - 2.5Gigabit Ethernet - HDMI - DisplayPort - 4 x SATA Interfaces

OVERVIEW:

  • Number of SATA Interfaces : 4
  • Controller Type : Serial ATA/600
  • Onboard Video : CPU Dependent Video
  • Chipset Manufacturer : Intel
  • Package Contents :
    • PRIME B760-PLUSD4 Desktop Motherboard
    • 2 x SATA 6Gb/s cables
    • 1 x I/O Shield
    • 1 x M.2 Rubber Package
    • 1 x Screw package for M.2 SSD
    • 1 x User guide
  • Number of Memory Slots : 4
  • Total Number of Expansion Slots : 4
  • Audio Channels : 7.1
  • Chipset Model : B760
  • Form Factor : ATX
  • Memory Form Factor : UDIMM
  • Memory Form Factor : DIMM
  • Total Number of PCI Express Slots : 4
  • Total Processor Supported : 1
  • Gigabit Ethernet : Yes
  • Maximum Memory Supported : 128 GB
  • Number of PCI Express x1 Slots : 2
  • Total Number of USB Ports : 6
  • Processor Socket : Socket LGA-1700
  • Width : 12"
  • 2.5Gigabit Ethernet : Yes
  • Memory Speed Supported : 2133 MHz
  • Memory Speed Supported : 2400 MHz
  • Memory Speed Supported : 2666 MHz
  • Memory Speed Supported : 2800 MHz
  • Memory Speed Supported : 2933 MHz
  • Memory Speed Supported : 3000 MHz
  • Memory Speed Supported : 3200 MHz
  • Memory Speed Supported : 3333 MHz
  • Memory Speed Supported : 3400 MHz
  • Memory Speed Supported : 3466 MHz
  • Memory Speed Supported : 3600 MHz
  • Memory Speed Supported : 3733 MHz
  • Memory Speed Supported : 4000 MHz
  • Memory Speed Supported : 4266 MHz
  • Memory Speed Supported : 4400 MHz
  • Memory Speed Supported : 4600 MHz
  • Memory Speed Supported : 4800 MHz
  • Memory Speed Supported : 5000 MHz
  • Memory Speed Supported : 5066 MHz
  • RAID Supported : Yes
  • Processor Generation Supported : 13th Gen
  • Processor Generation Supported : 12th Gen
  • Depth : 9.6"
  • Number of M.2 Interfaces : 3
  • RAID Levels : 10
  • RAID Levels : 5
  • RAID Levels : 1
  • RAID Levels : 0
  • Processor Supported : Core
  • Processor Supported : Celeron
  • Processor Supported : Pentium Gold
  • Memory Technology : DDR4 SDRAM
  • Number of PCI Express x16 Slots : 2
  • Total Number of Onboard USB Ports : 7
  • Number of Onboard USB 2.0 Ports : 4
  • PCI Express Standard : PCI Express 3.0
  • PCI Express Standard : PCI Express 5.0
  • PCI Express Standard : PCI Express 4.0
  • Number of USB 3.2 Gen 1 Type-A Ports : 1
  • Number of USB 3.2 Gen 2 Type-A Ports : 2
  • S/PDIF : Yes
  • VGA : Yes
  • HDMI : Yes
  • HDMI Version : 2.1
  • DisplayPort : Yes
  • Number of Network (RJ-45) Ports : 1
  • Thunderbolt : Yes
  • Number of Thunderbolt 4 Ports : 1
  • Additional Info

    Additional Info

    SKU 01196PRIMEB760PLUSD4-BF
    Weight 1.0000
    Is Featured N/A
    Manufacturer ASUS Computer International
    Manufacturer Part Number PRIMEB760-PLUSD4
    Width 12"
    Length 1
    Height 1
    Product ID 01196PRIMEB760PLUSD4
    UNSPSC N/A
    Other Part Number N/A
